Series Special AA
| Optional accessories | Accessories |

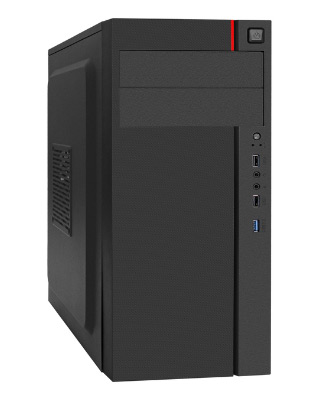

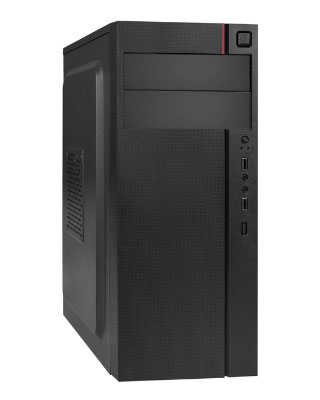

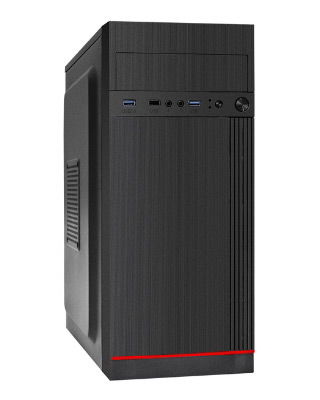

| Model |  AA-440 |  AA-440U |  AA-442U2 |  AA-443 |  AA-443U |
| Cases Features | |||||
| Case Type | MidiTower | MidiTower | MidiTower | MidiTower | MidiTower |
| Motherboard Support | ATX | ATX | ATX | ATX | ATX |
| Chassis Material | Steel | Steel | Steel | Steel | Steel |
| Material Thickness, mm | 0,5 | 0,5 | 0,5 | 0,4 | 0,4 |
| Material of front panel | - | - | - | Steel | Steel |
| Material of left panel | - | - | - | Steel | Steel |
| Material of right panel | - | - | - | Steel | Steel |
| Screwless Access | Yes | Yes | Yes | Yes | Yes |
| Number of screws for mounting the side panel, pcs | 2 | 2 | 2 | 2 | 2 |
| Case Color | Black | Black | Black | Black | Black |
| Chassis Color | Black | Black | Black | Black | Black |
| Power | |||||
| PSU Type | ATX | ATX | ATX | ATX | ATX |
| Power supply location | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side |
| PSU models* | AA350, AA400, AA450, AA500, UNS350, UNS400, UNS450, UNS500 | AA350, AA400, AA450, AA500, UNS350, UNS400, UNS450, UNS500 | AA350, AA400, AA450, AA500, UNS350, UNS400, UNS450, UNS500 | AA350, AA400, AA450, AA500, UNS350, UNS400, UNS450, UNS500 | AA350, AA400, AA450, AA500, UNS350, UNS400, UNS450, UNS500 |
| Recommended ExeGate PSU | Series AA, UNS | Series AA, UNS | Series AA, UNS | Series AA, UNS | Series AA, UNS |
| Construction | |||||
| External Drive Bay 5,25" | 1 | 1 | 1 | - | - |
| Internal Drive Bay 3,5" | 3 | 3 | 3 | 1 | 1 |
| Internal Drive Bay 2,5" | 3 | 3 | 3 | 2 (1 instead of 1x3.5") | 2 (1 instead of 1x3.5") |
| Expansion Slots | 7 | 7 | 7 | 7 | 7 |
| Cooling System | |||||
| Places for installation on the front panel | 12 cm x 2 | 12 cm x 2 | 12 cm x 2 | - | - |
| Places for installation on the rear panel | 8 cm x 1 | 8 cm x 1 | 8 cm x 1 | 8 cm x 1 | 8 cm x 1 |
| Places to install on the side panel | 12 cm x 1 | 12 cm x 1 | 12 cm x 1 | 12 cm x 1 | 12 cm x 1 |
| Interfaces | |||||
| Interface location | on the front panel | on the front panel | At the top of the front panel | on the front panel | on the front panel |
| USB 2.0 Type-A | 2 | 2 | 1 | 2 | 1 |
| USB 3.2 Gen1 Type-A | - | 1 | 2 | - | 1 |
| Audio I/O Ports | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm | HD Audio 2 x 3.5mm | HD Audio 2 x 3.5mm |
| Other parameters | |||||
| Max. motherboard length, mm | 244 | 244 | 244 | 300 | 300 |
| Max. height of the CPU fan, mm | 135 | 135 | 135 | 150 | 150 |
| Max. PSU length, mm | 185 | 185 | 185 | 250 | 250 |
| Max. PSU length with drive opposite, mm | 140 | 140 | 145 | 200 | 200 |
| Max. SVGA length, mm | 275 | 275 | 275 | 300 | 300 |
| Max. SVGA length with drive opposite, mm | - | - | - | 300 | 300 |
| Chassis dimensions | |||||
| Width, mm | 170 | 170 | 170 | 170 | 170 |
| Height, mm | 410 | 410 | 410 | 410 | 410 |
| Depth, mm | 310 | 310 | 310 | 330 | 330 |
| Case Dimensions | |||||
| Width, mm | 180 | 180 | 180 | 170 | 170 |
| Height, mm | 415 | 415 | 415 | 410 | 410 |
| Depth, mm | 352 | 352 | 352 | 335 | 335 |
| Carton Dimensions | |||||
| Width, mm | 210 | 210 | 210 | 210 | 210 |
| Height, mm | 390 | 390 | 390 | 380 | 380 |
| Depth, mm | 450 | 450 | 450 | 450 | 450 |
| Net Weight, kg | 2 | 2 | 2 | 2 | 2 |
| Gross Weight, kg | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| PSU models, PN/EAN | |||||
| w/o PSU | EX290172 4895205128316 | EX290173 4895205128361 | EX290174 4895205128415 | EX298131 4895205180390 | EX298134 4895205186583 |
| 350W/AA | EX290176 4895205128323 | EX290177 4895205128378 | EX290178 4895205128422 | EX298136 4895205180406 | EX298140 4895205180451 |
| 350W/UNS | EX299317 4895205186422 | EX299321 4895205186460 | EX299325 4895205186507 | EX299329 4895205186545 | EX299333 4895205186590 |
| 400W/AA | EX290180 4895205128330 | EX290184 4895205128385 | EX290188 4895205128439 | EX298137 4895205180413 | EX298141 4895205180468 |
| 400W/UNS | EX299318 4895205186439 | EX299322 4895205186477 | EX299326 4895205186514 | EX299330 4895205186552 | EX299334 4895205186606 |
| 450W/AA | EX290182 4895205128347 | EX290186 4895205128392 | EX290189 4895205128446 | EX298139 4895205180420 | EX298142 4895205180475 |
| 450W/UNS | EX299319 4895205186446 | EX299323 4895205186484 | EX299327 4895205186521 | EX299331 4895205186569 | EX299335 4895205186613 |
| 500W/AA | EX290183 4895205128354 | EX290187 4895205128408 | EX290190 4895205128453 | EX298138 4895205180437 | EX298143 4895205180482 |
| 500W/UNS | EX299320 4895205186453 | EX299324 4895205186491 | EX299328 4895205186538 | EX299332 4895205186576 | EX299336 4895205186620 |
| * At a customer's request Computer Cases can be completed with any PSU | |||||
