Series EVO

Optional accessories Accessories


Model EVO-5001A
EVO-5001A		EVO-8225
EVO-8225		EVO-8227
EVO-8227		EVO-8243
EVO-8243		EVO-9202
EVO-9202		EVO-9205
EVO-9205		EVO-9211

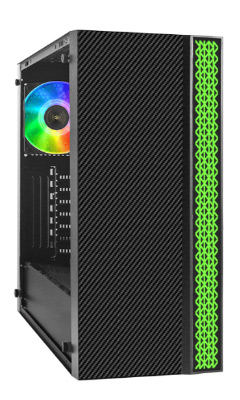

EVO-9211
Cases FeaturesThe color and backlight mode of the front panel are controlled by a button located at the top of the front panel.-----
Case TypeMidiTowerMidiTowerMidiTowerMidiTowerMiditowerMiditower-
Motherboard SupportATX, mATX, ITXATX, mATX, ITXATX, mATX, ITXATX, mATX, ITXATX, micro ATX, mini ATX, ITXATX, micro ATX, mini ATX, ITX-
Chassis MaterialSteelSteelSteelSteelSteelSteel-
Material Thickness, mm0,550,450,550,450,60,56-
Material of front and side panels-Plastic/glass-Plastic/glassPlastic/glassPlastic/glass-
Material of front panelPlastic mesh-Plastic mesh----
Material of left panelTempered glass-Tempered glass----
Material of right panelSteel-Steel----
Screwless AccessYesYesYesYesYesYes-
Number of screws for mounting the side panel, pcs666666-
Window on the side panelYesYesYesYesYesYes-
LED BacklightMulti-color fixed at the fans on the front panelMulti-color fixed fan on the front and back wall and dynamic RGB strip on the front panelMulti-color fixed at the fans on the front panelMulti-color fixed at the fans on the front panelMulti-color -n-adjustable fan lighting on the front panelMulti-color -n-adjustable fan lighting on the front panel-
Case ColorBlackBlackBlackBlackBlackBlack-
Chassis ColorBlackBlackBlackBlackBlackBlack-
Power
PSU TypeATXATXATXATXATXATX-
Power supply locationIn the lower partIn the lower part of the rear sideIn the lower partIn the lower part of the rear sideIn the lower part of the rear sideIn the lower part of the rear side-
PSU models*-w/o PSU-w/o PSUw/o PSUw/o PSU-
PSU models*500NPX, 600NPX, 700NPX, EVO800500NPX, 600NPX, 700NPX500NPX, 600NPX, 700NPX, EVO800500NPX, 600NPX, 700NPX500NPX, 600NPX, 700NPX500NPX, 600NPX, 700NPX-
Recommended ExeGate PSUNPX/EVO SeriesSeries NPXNPX/EVO SeriesSeries NPXSeries NPXSeries NPX-
Construction
Internal Drive Bay 3,5"322211-
Internal Drive Bay 2,5"3 (1 instead of 1 internal 3.5")33 (1 instead of 1 internal 3.5")333-
Dust Filter (location)In the top and bottom panelsIn the top panel, in the bottom of the caseIn the front, top and bottom panelsIn the top panel, in the bottom of the caseOn the top panelOn the top panel-
Expansion Slots7+277799-
Cooling System
Installed fans on the front panel3 x FRGB 12cm1 x FRGB 12cm3 x FRGB 12cm3 x FRGB 12cm12 cm x 312 cm x 3-
Installed fans on the rear panel-1 x FRGB 12cm-----
Places for installation on the front panel14 cm x 3 or 12 cm x 312 cm x 314 cm x 3 or 12 cm x 312 cm x 312 cm x 312 cm x 3-
Places for installation on the top panel14 cm x 3 or 12 cm x 312 cm x 212 cm x 212 cm x 212 cm x 212 cm x 2-
Places for installation on the rear panel12 cm x 112 cm x 112 cm x 112 cm x 112 cm x 112 cm x 1-
Support Liquid Cooling Systems----YesYes-
A place for water cooling on the top panel.----YesYes-
Recommended ExeGate fans12 cm12 cm12 cm12 cm12 cm12 cm-
Interfaces
Interface locationIn the top panelAt the top of the front panelIn the top panelAt the top of the front panelAt the top of the front panelAt the top of the front panel-
USB 2.0 Type-A222222-
USB 3.2 Gen1 Type-A111111-
Audio I/O PortsHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mm-
Other parameters
Max. motherboard length, mm244244250244305305-
Max. height of the CPU fan, mm150150150150160160-
Max. PSU length, mm160 (300 instead of 3 internal 3,5")160160 (300 instead of 2 internal 3,5")160187187-
Max. PSU length with drive opposite, mm160160160160187187-
Max. SVGA length, mm310300310300300300-
Max. SVGA length with drive opposite, mm310250310250---
Chassis dimensions
Width, mm210185200185210210-
Height, mm450413440413441442-
Depth, mm340335330335343 + 11 mm (raised bezel for expansion slots (removable))341 + 11 mm (raised bezel for expansion slots (removable))-
Case Dimensions
Width, mm210200207200210 + 3 mm (protruding bolts of the side door)211 + 3 mm (protruding bolts of the side door)-
Height, mm220427450427451450-
Depth, mm385380380380374 +11 mm (raised bezel for expansion slots (removable))383-
Carton Dimensions
Width, mm265230250230265265-
Height, mm490435420435438446-
Depth, mm610480490480513513-
Gross Weight, kg4,14,34,414,34,64,7-
PSU models, PN/EAN
w/o PSUEX295766
4895205160484		EX292858
4895205132153		EX295765
4895205160491		EX292859
4895205132146		EX294965
4895205140981		EX294966
4895205140998		EX299420
4895205188488
450W/NPXEX296316
4895205163263
500W/NPXEX296317
4895205163270		EX293014
4895205137226		EX296352
4895205163294		EX293017
4895205137271		EX294971
4895205140899		EX294974
4895205140929
600W/NPXEX296318
4895205163393		EX293015
4895205137233		EX296353
4895205163409		EX293018
4895205137257		EX294972
4895205140905		EX294975
4895205140936
700W/NPXEX296319
4895205163287		EX293016
4895205137240		EX296354
4895205163300		EX293019
4895205137264		EX294973
4895205140912		EX294976
4895205140943
800W/EVO RGBEX296071
4895205161955		EX296073
4895205161856		EX296074
4895205161863		EX296075
4895205161870		EX296077
4895205161894		EX296078
4895205161900
* At a customer's request Computer Cases can be completed with any PSU
