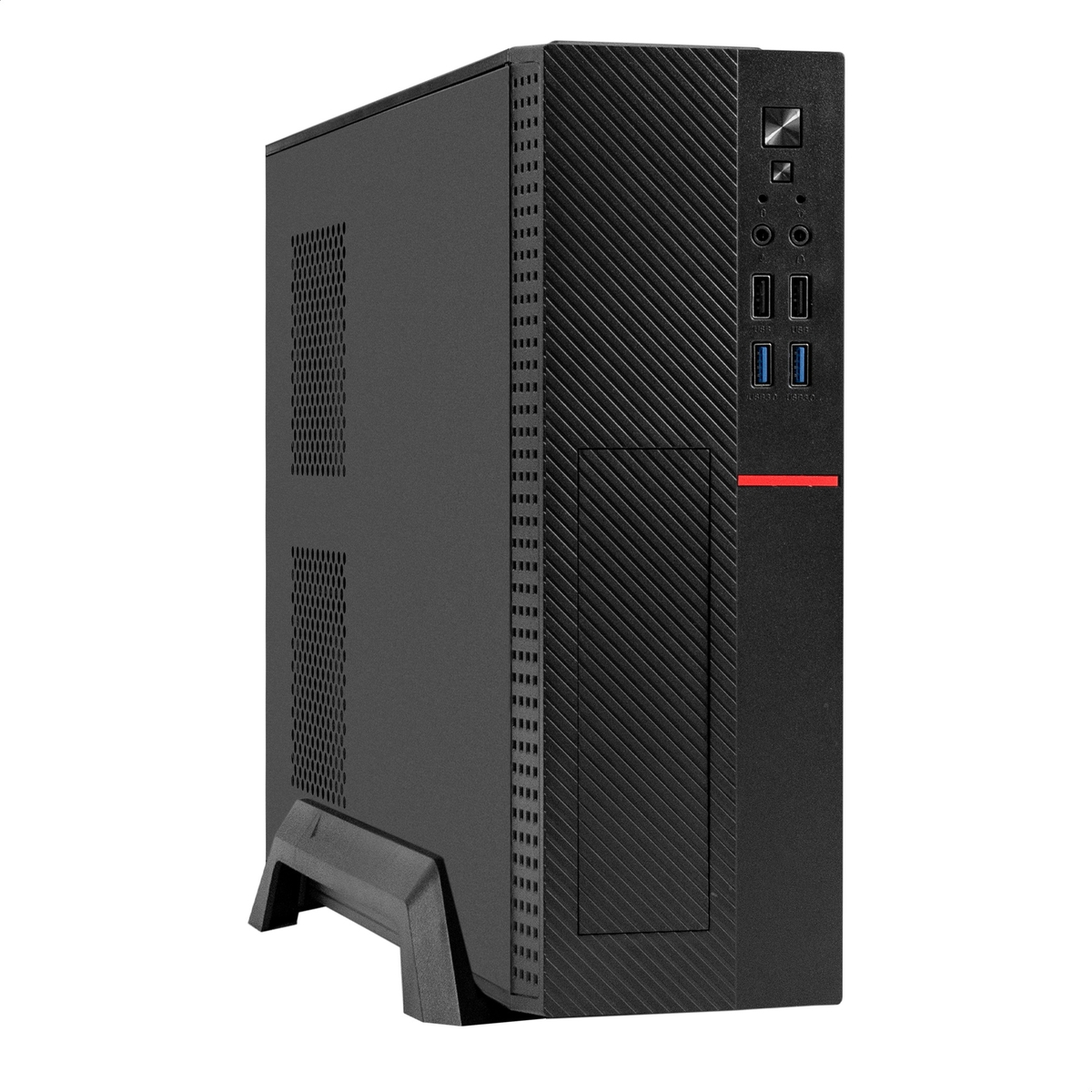

Desktop ExeGate MI-307U2/M400
| Modification | P/N | EAN |
| w/o PSU | EX298770 | 4895205184985 |
| 300W | EX298775 | 4895205184992 |
| 350W | EX298776 | 4895205185005 |
| 400W | EX298777 | 4895205185012 |
| 450W | EX298778 | 4895205185029 |
Specification
| Case Type | Desktop |
| Motherboard Support | mATX |
| Chassis Material | Steel |
| Material Thickness, mm | 0,6 |
| Material of front panel | Plastic |

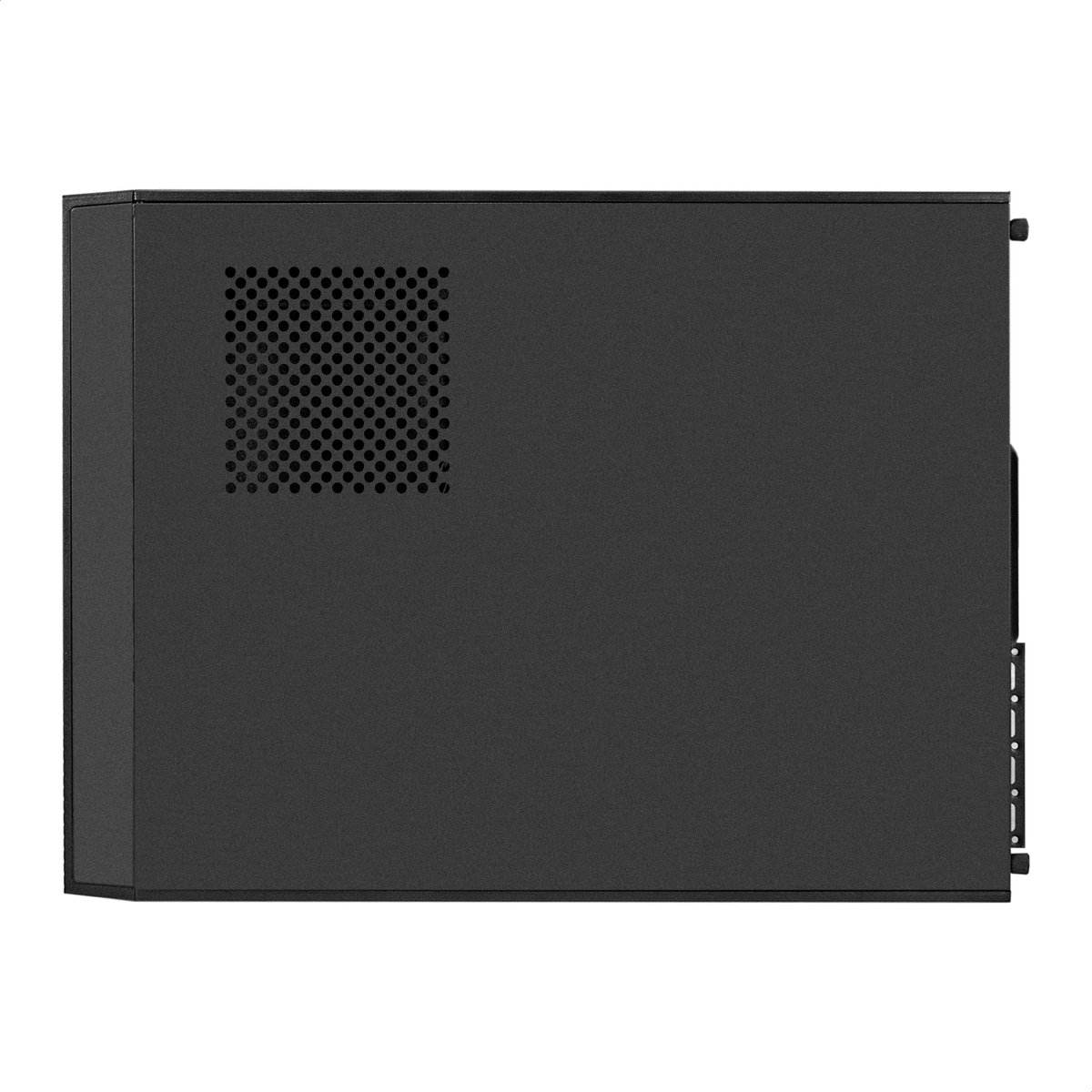

| Material of left(top) panel | Steel |

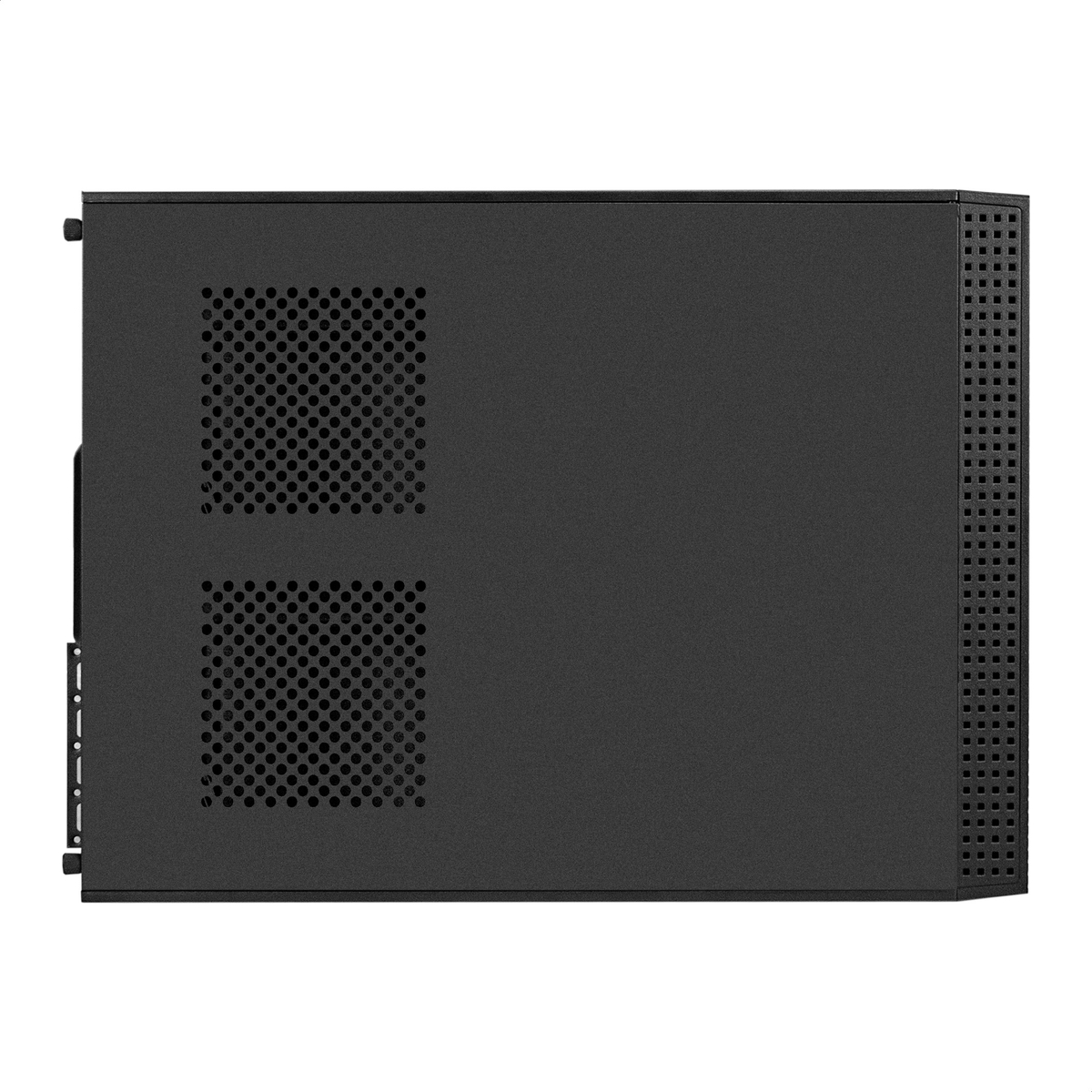

| Material of right panel | Steel |
| Screwless Access | Yes |
| Number of screws for mounting the side panel, pcs | 4 |
| Hinge For The Lock | Yes |
| Case Color | Black |
| Chassis Color | Black |

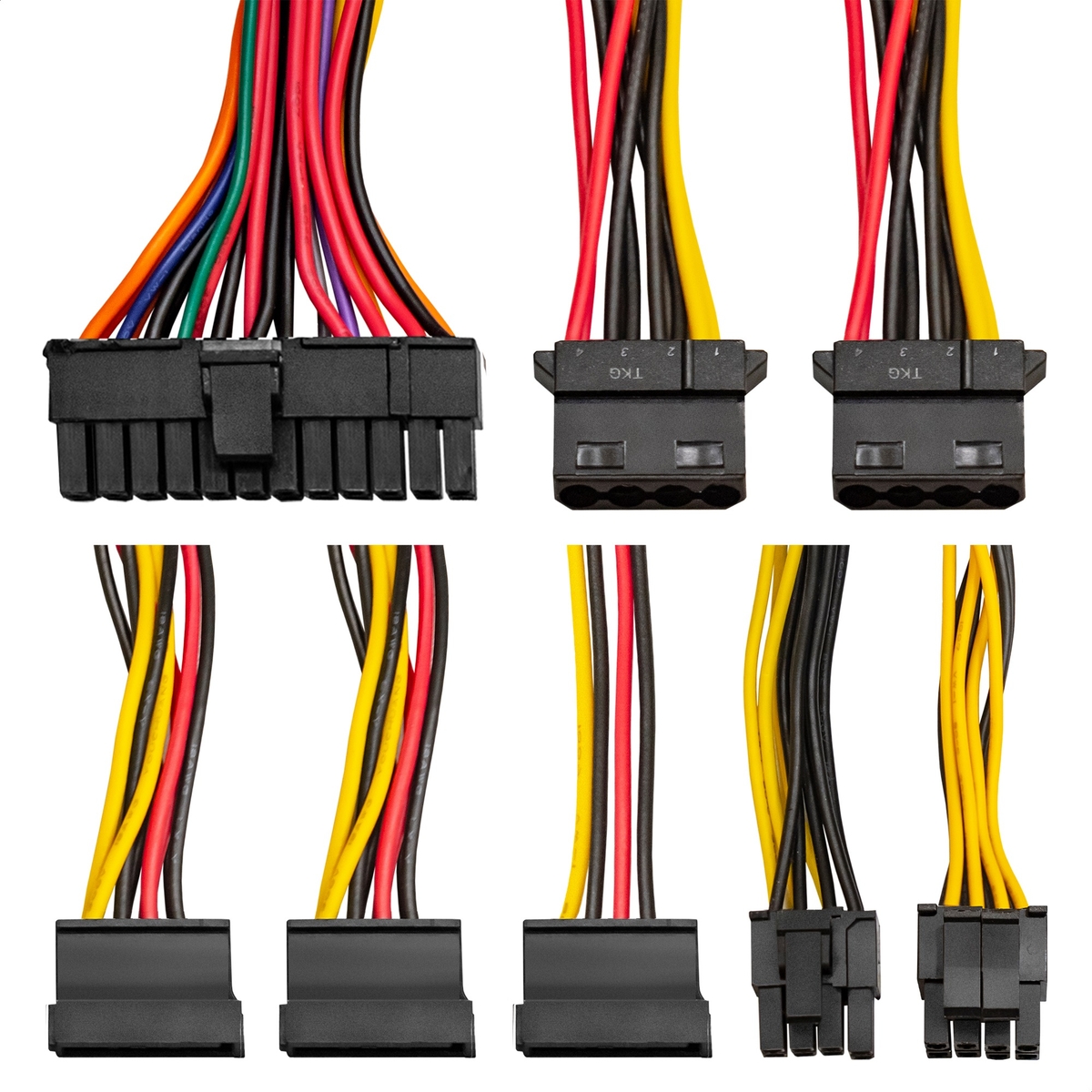

| Power | |
| PSU Type | SFX |
| PSU models | ExeGate M400 |
| PSU, W | 400 |
| Construction | |
| External 5,25" Drive Bay | 1 |
| Internal 3,5" Drive Bay | 2 (1 instead 1 x 5.25") |
| Internal 2,5" Drive Bay | 3 (1 instead 1 x 5.25") |
| Expansion Slots | 4, low profile |

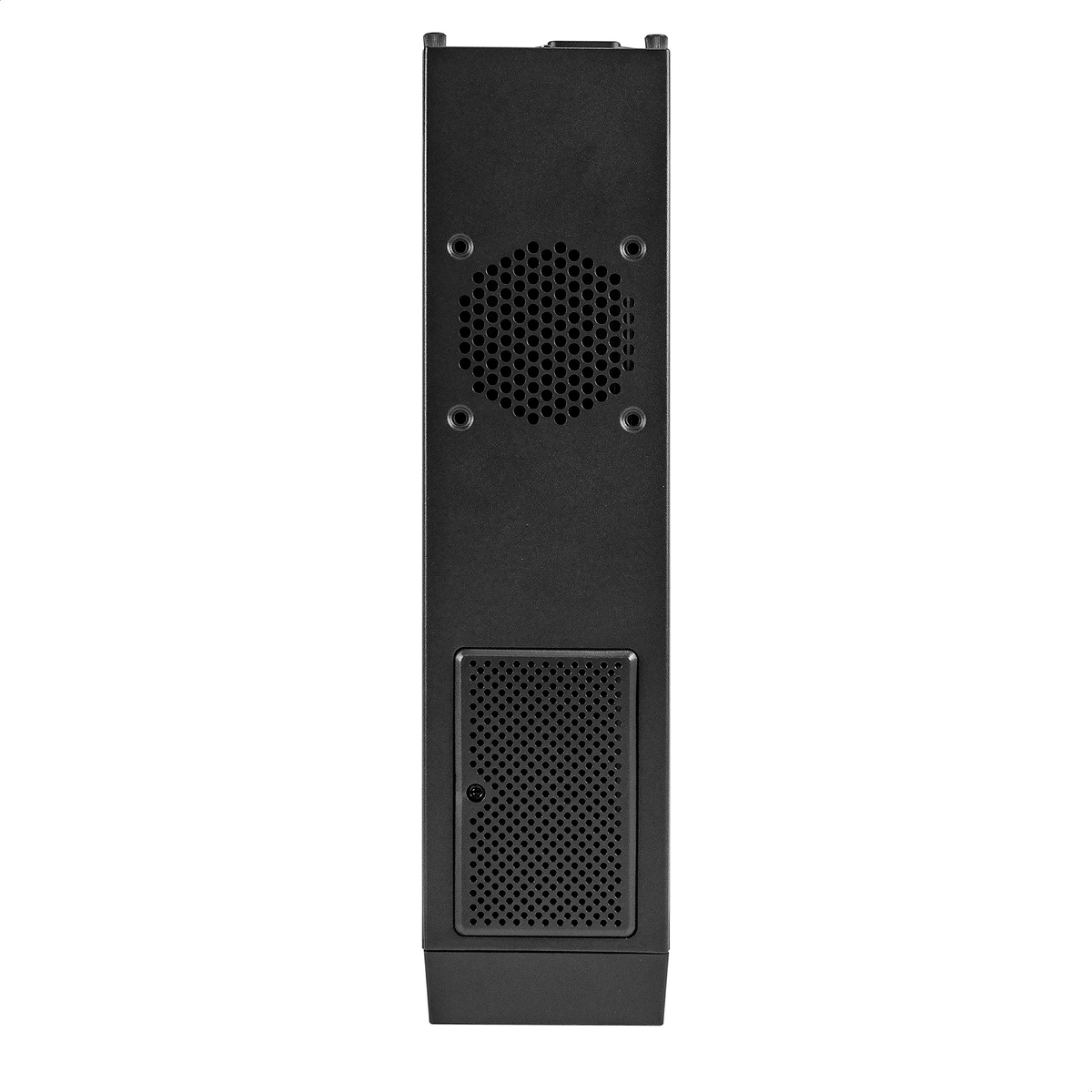

| Places to install on the side panel | 1 x 80x25mm, 1 x 80x15mm |
| Recommended ExeGate fans | 80x25 mm, 80x15 mm |

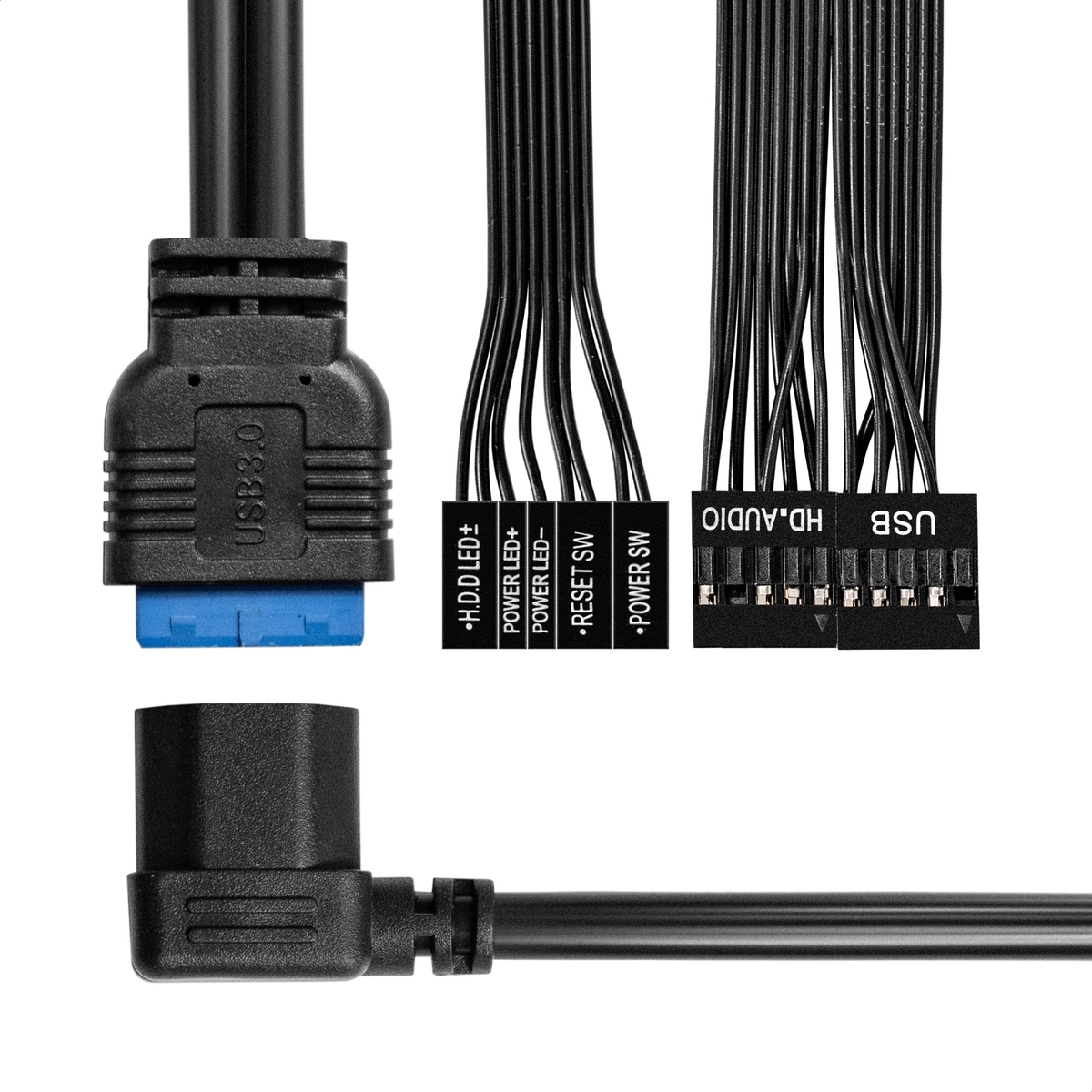

| Interfaces | |
| Interface location | On the front panel |
| USB 2.0 Type-A | 2 |
| USB 3.2 Gen1 Type-A | 2 |
| Audio I/O Ports | HD Audio 2 x 3.5mm |
| Other parameters | |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 70 |
| Max. PSU length, mm | 100 (SFX) |
| Max. SVGA length, mm | 240 (low profile only) |
| Max. SVGA length with drive opposite, mm | 220 (low profile only) |

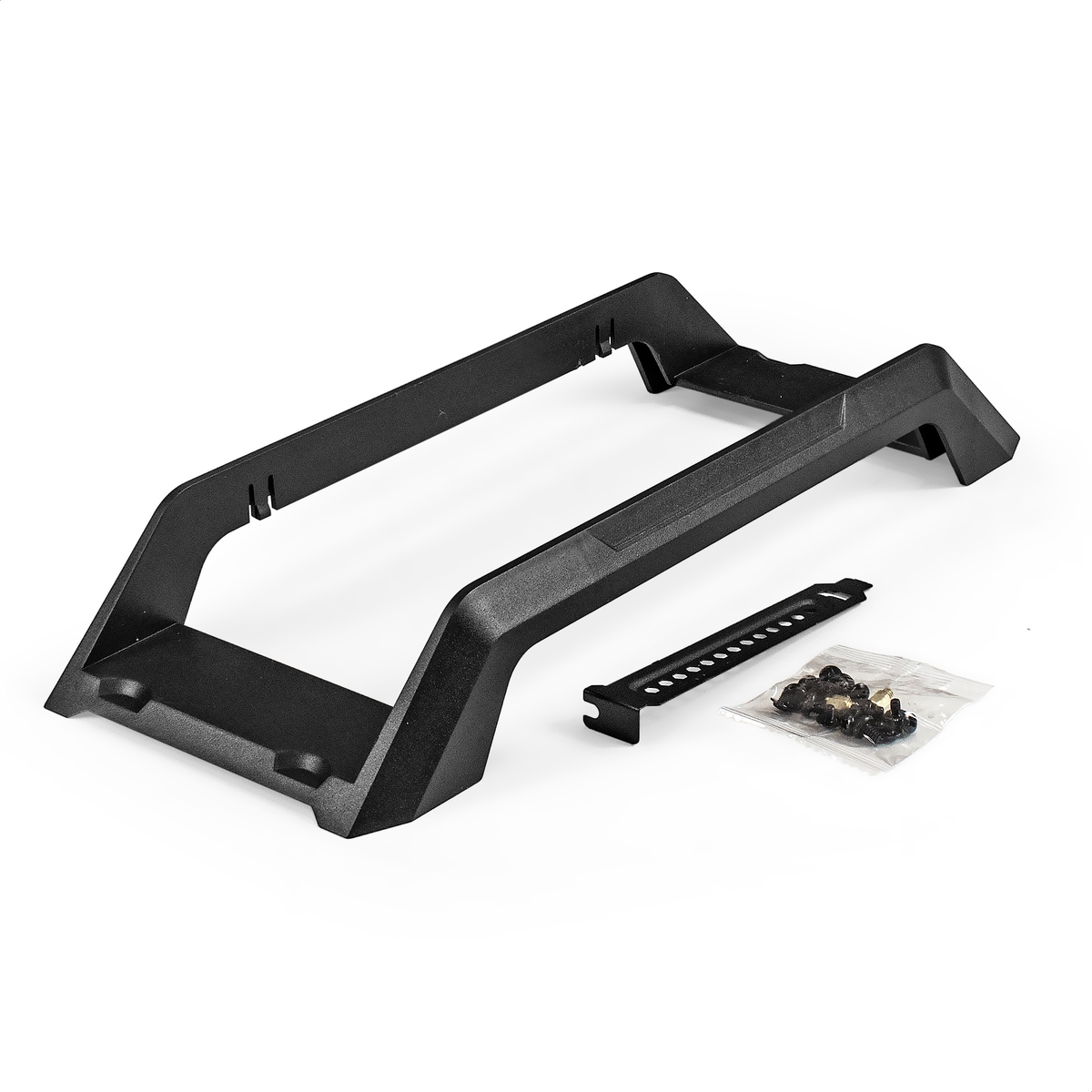

| Foot stand | Yes |
| Chassis dimensions | |
| Width, mm | 100 |
| Height, mm | 305 |
| Depth, mm | 380 |
| Case Dimensions | |
| Width, mm | 102 |
| Height, mm | 310 |
| Depth, mm | 418 |
| Carton Dimensions | |
| Width, mm | 160 |
| Height, mm | 375 |
| Depth, mm | 465 |
| Net Weight , kg | 3,5 |
| Gross Weight , kg | 4 |
