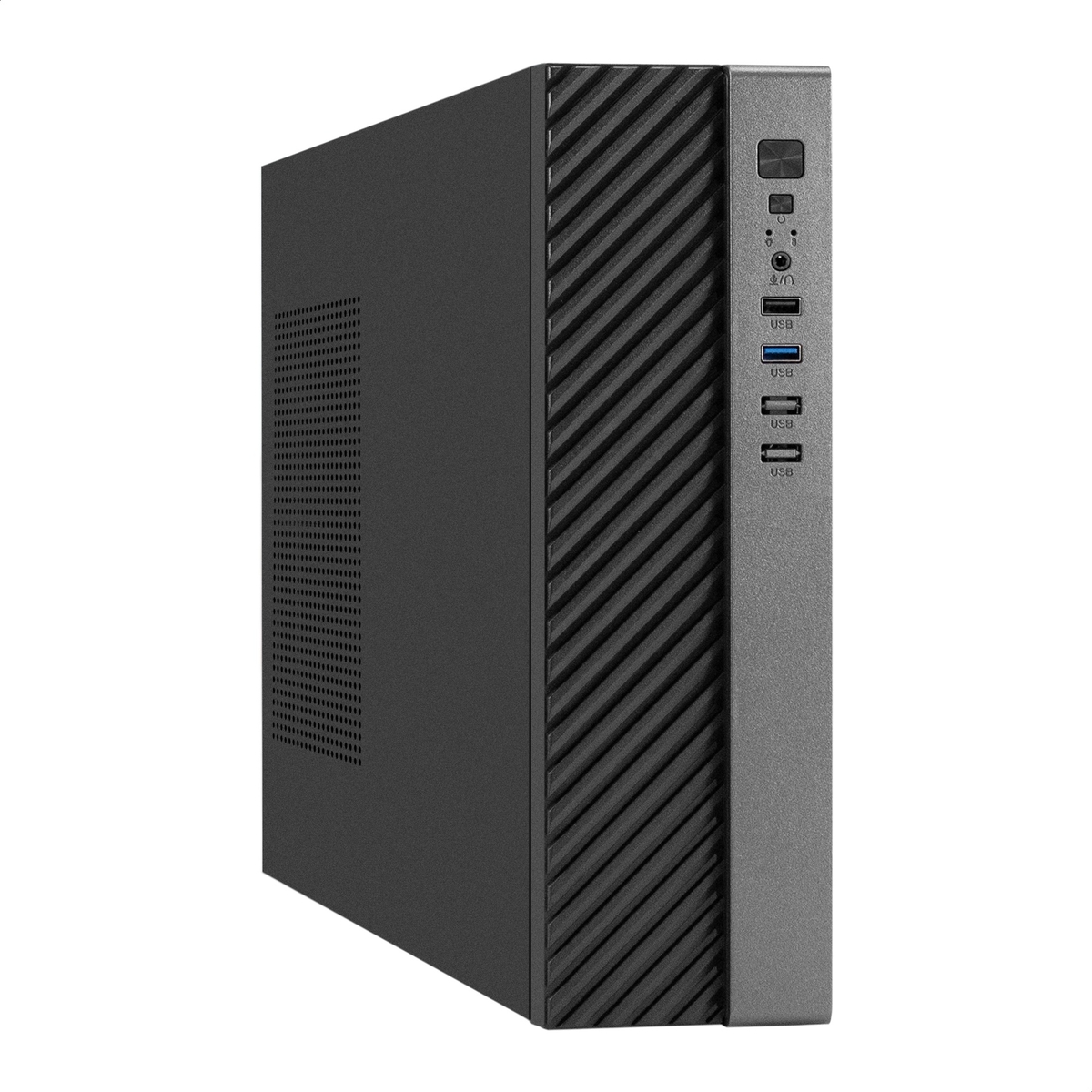

Desktop ExeGate MI-302U
| Modification | P/N | EAN |
| w/o PSU | EX298790 | 4895205185104 |
| 300W | EX298792 | 4895205185111 |
| 350W | EX298793 | 4895205185128 |
| 400W | EX298794 | 4895205185135 |
| 450W | EX298795 | 4895205185142 |
Specification
| Cases Features | |
| Case Type | Desktop |
| Motherboard Support | mATX |
| Chassis Material | Steel |
| Material Thickness, mm | 0,6 |
| Material of front panel | Plastic |
| Material of left(top) panel | Steel |
| Material of right panel | Steel |
| Screwless Access | Yes |
| Number of screws for mounting the side panel, pcs | 4 |
| Hinge For The Lock | Yes |
| Case Color | Black |
| Chassis Color | Black |
| Power | |
| PSU Type | TFX |
| PSU models | w/o PSU |
| PSU models | TPS300, TPS350, TPS400, TPS450 |
| Recommended ExeGate PSU | Series Special TPS |
| Construction | |
| Internal 3,5" Drive Bay | 1 |
| Internal 2,5" Drive Bay | 4 (1 instead 1 x 3.5", 1 FAN 80x80 mm) |
| Expansion Slots | 4, low profile |
| Cooling System | |
| Places for installation on the front panel | 1 x 8 cm (instead 1 SSD 2.5") |
| Recommended ExeGate fans | 8 cm |
| Interfaces | |
| Interface location | On the front panel |
| USB 2.0 Type-A | 1 |
| USB 3.2 Gen1 Type-A | 1 |
| Audio I/O Ports | 1 x HD Audio 3.5mm 4pin Combo (Line+Mic) |
| Other parameters | |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 70 |
| Max. PSU length, mm | 230 |
| Max. SVGA length, mm | 250 (low profile only) |
| Chassis dimensions | |
| Width, mm | 98 |
| Height, mm | 330 |
| Depth, mm | 270 |
| Case Dimensions | |
| Width, mm | 98 |
| Height, mm | 330 |
| Depth, mm | 300 |
| Carton Dimensions | |
| Width, mm | 140 |
| Height, mm | 335 |
| Depth, mm | 380 |
| Net Weight , kg | 1,7 |
| Gross Weight , kg | 2 |
