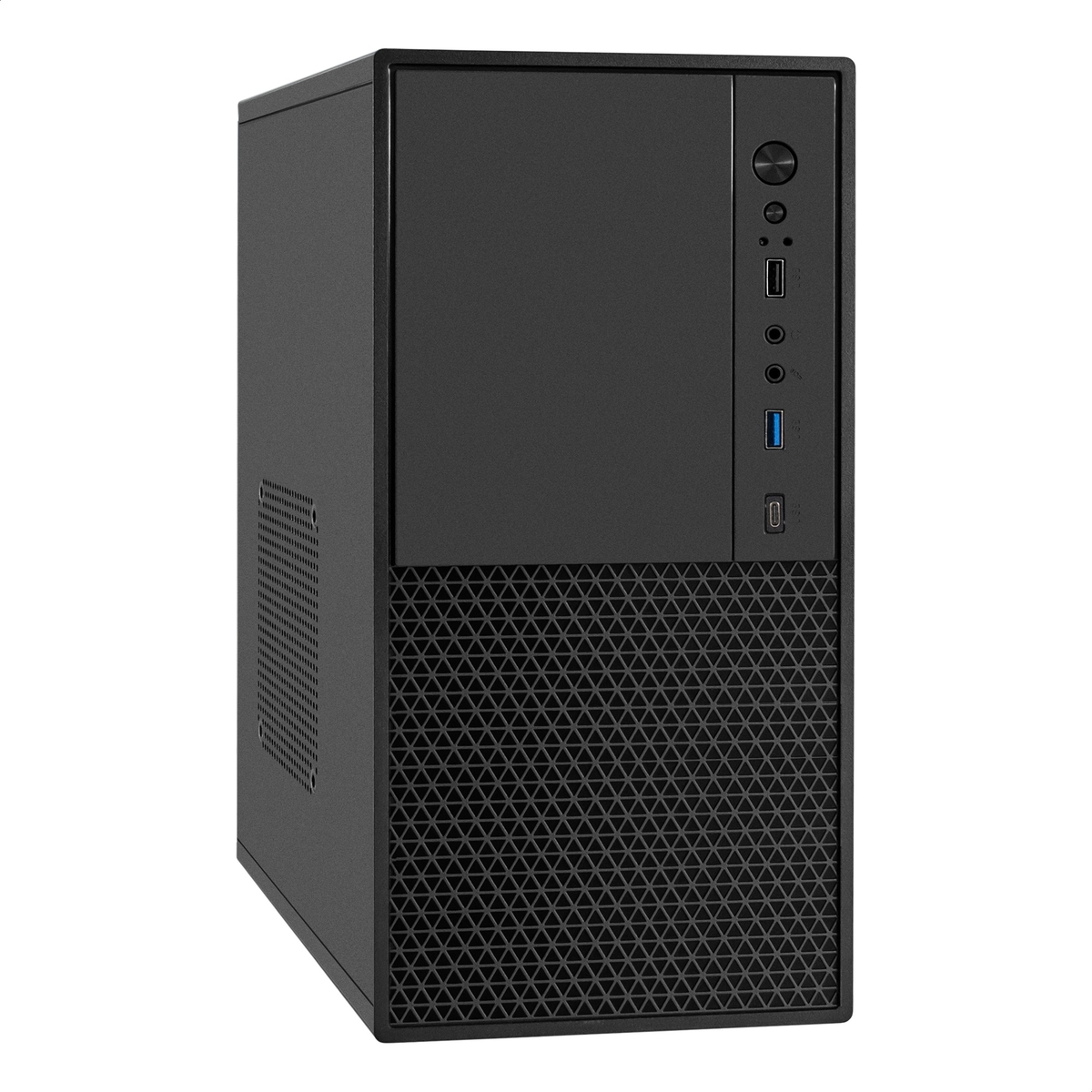

Minitower ExeGate BAA-308MUC-AAA400

Specification

Cases Features
Model	BAA-308MUC-AAA400
Case Type	MiniTower
Motherboard Support	mATX
Chassis Material	Steel
Material Thickness, mm	0,45
Material of front and side panels	Plastic / Steel
Material of front panel	Plastic
Material of left panel	Steel
Material of right panel	Steel
Screwless Access	Yes
Number of screws for mounting the side panel, pcs	4
Hinge For The Lock	Yes
Case Color	Black
Chassis Color	Black

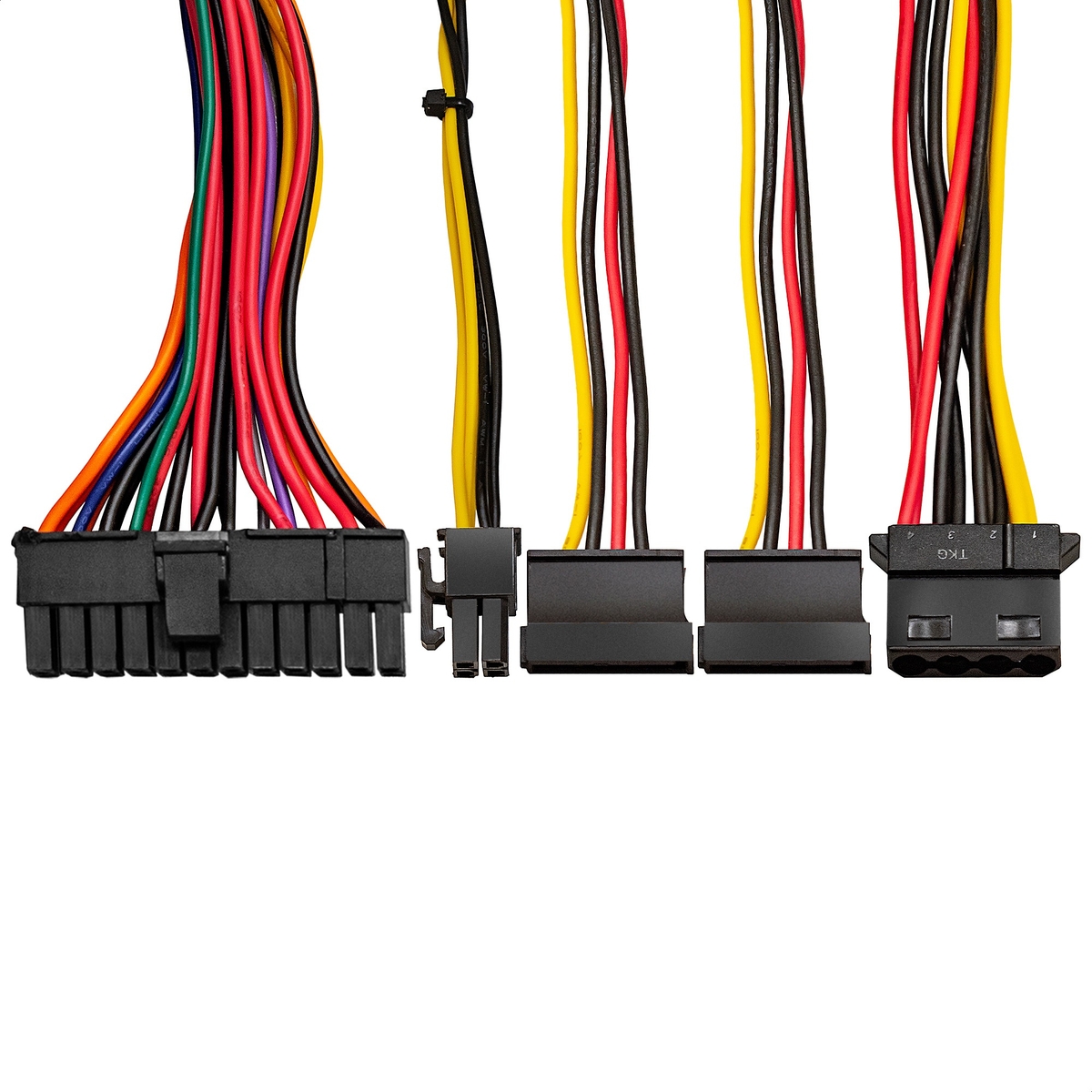

Power
PSU Type	ATX

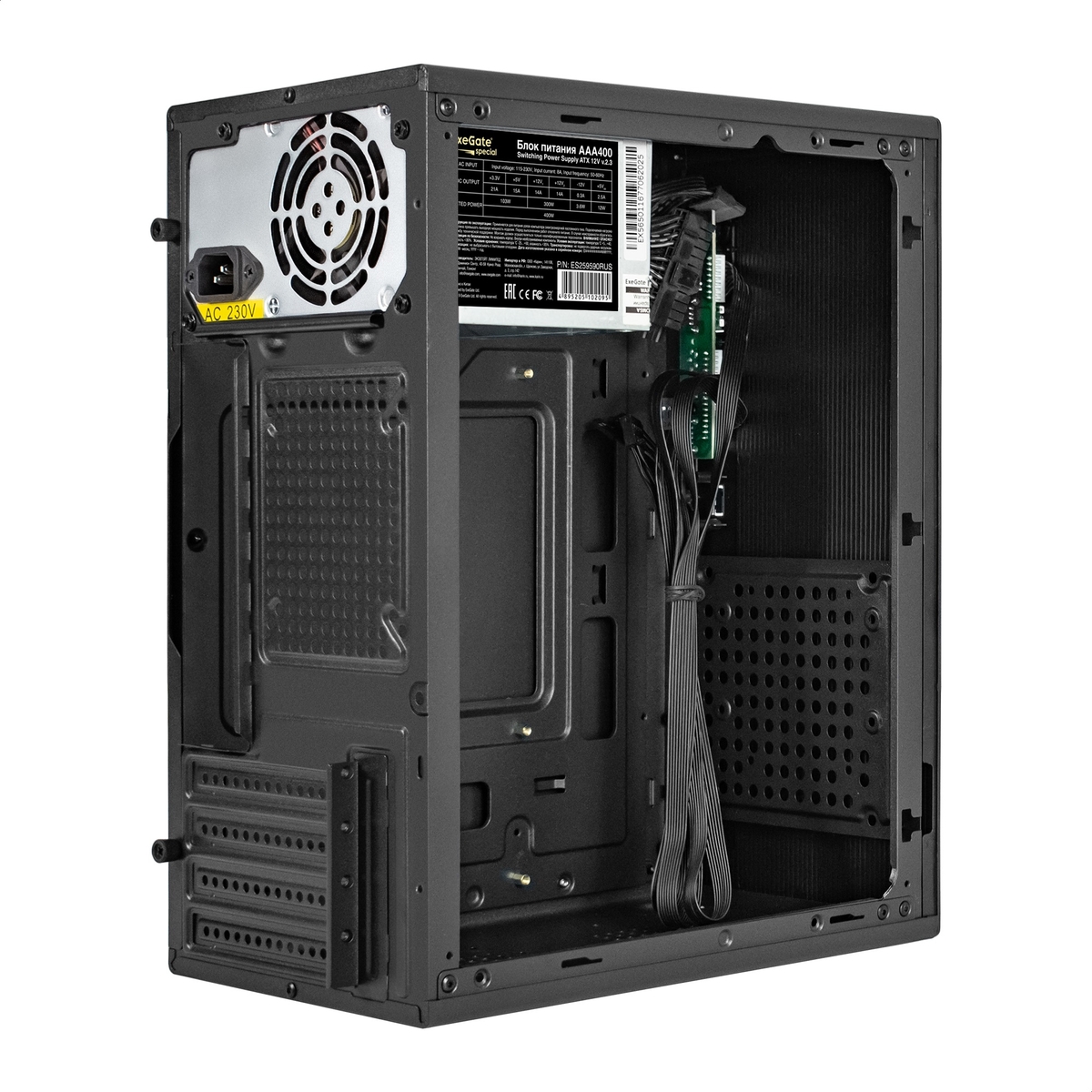

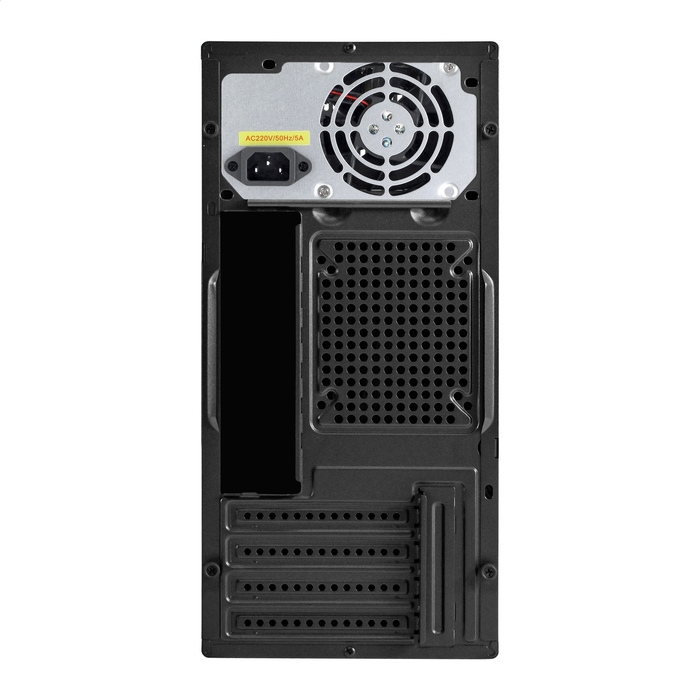

Power supply location	At the top of the rear side
PSU models	ExeGate AAA400
PSU, W	400

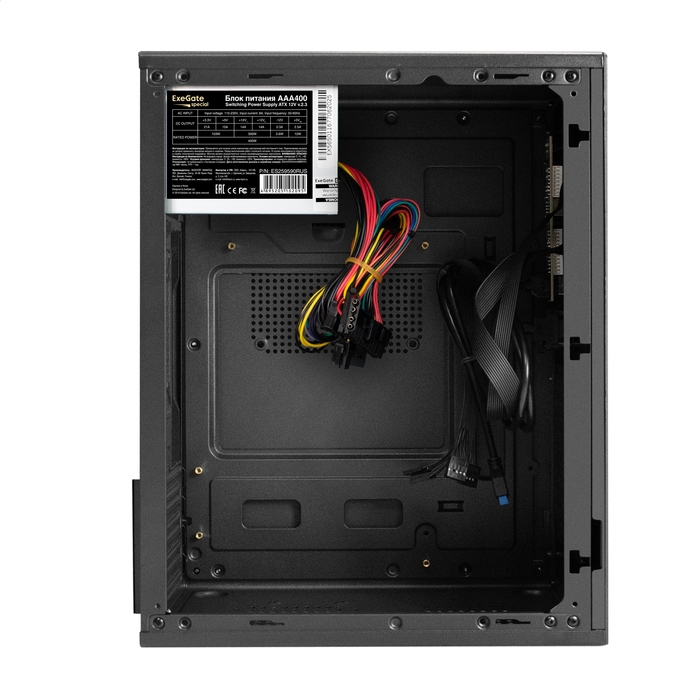

Construction
Internal 3,5" Drive Bay	2
Internal 2,5" Drive Bay	2
Expansion Slots	4
Cooling System
Places for installation on the rear panel	1 x 8/9 cm

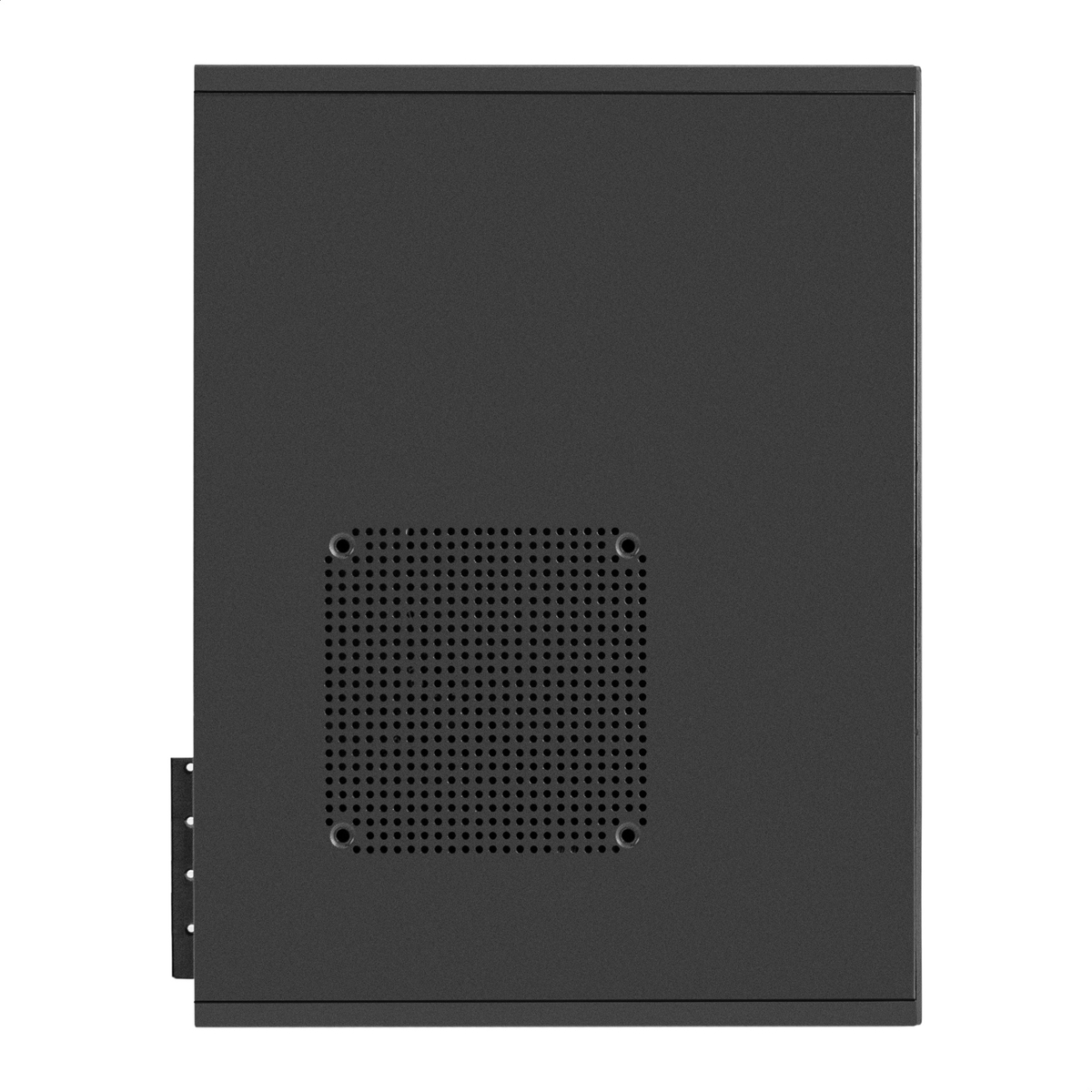

Places to install on the side panel	1 x 12 cm
Recommended ExeGate fans	8 cm, 9 cm, 12 cm

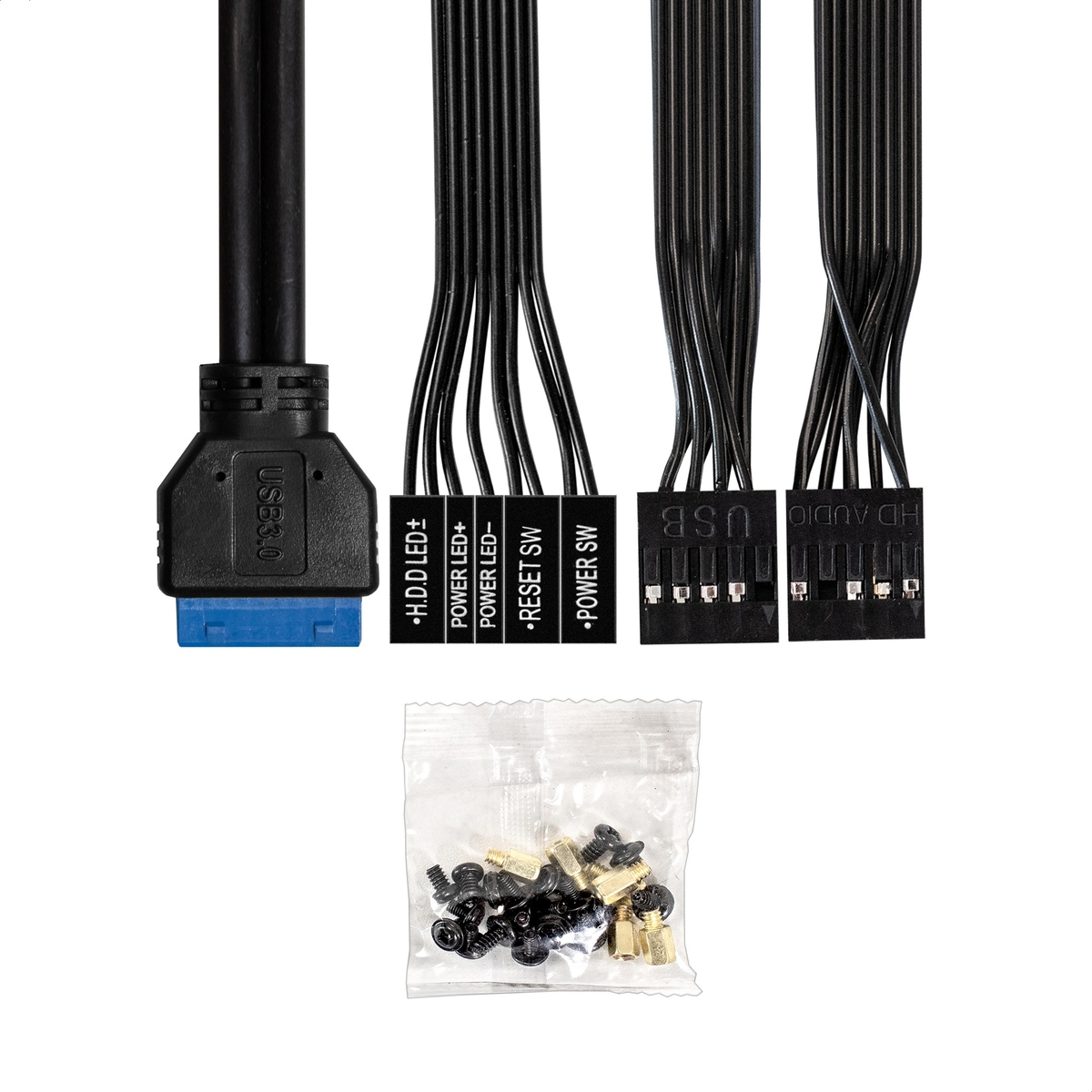

Interfaces

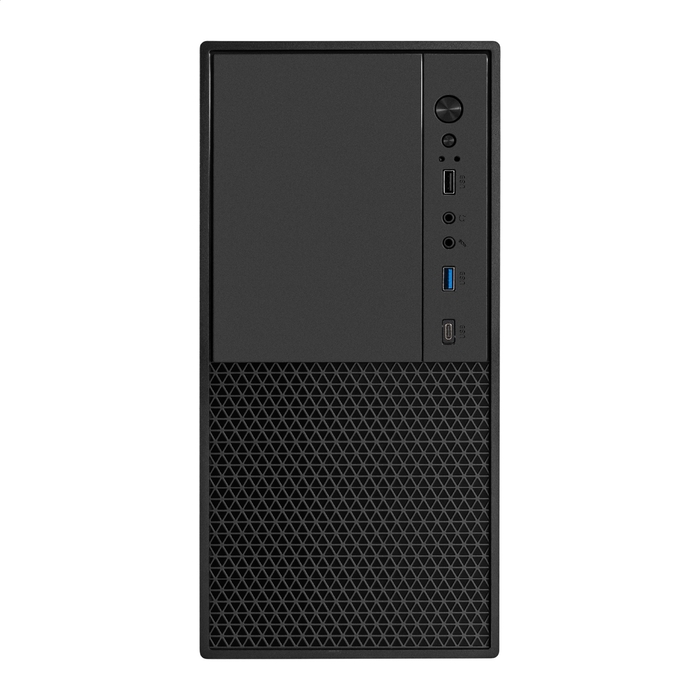

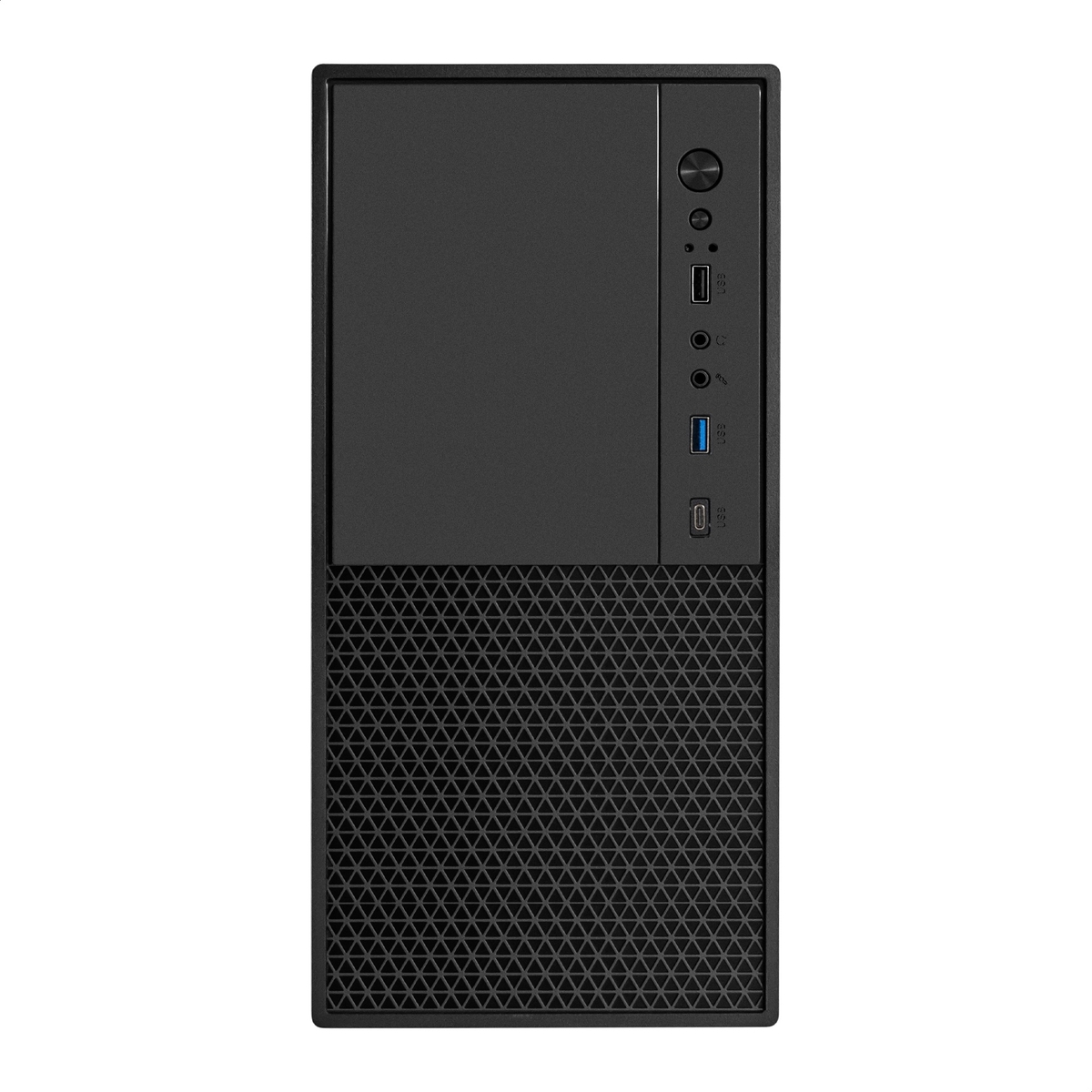

Interface location	At the top of the front panel
USB 2.0 Type-A	1
USB 3.2 Gen1 Type-A	1
USB 3.2 Gen1 Type-C	1
Audio I/O Ports	HD Audio 2 x 3.5mm
Other parameters
Max. motherboard length, mm	244
Max. height of the CPU fan, mm	140
Max. PSU length, mm	180
Max. SVGA length, mm	240
Max. SVGA length with drive opposite, mm	220
Chassis dimensions
Width, mm	168
Height, mm	350
Depth, mm	260
Case Dimensions
Width, mm	169
Height, mm	353
Depth, mm	274
Carton Dimensions
Width, mm	205
Height, mm	320
Depth, mm	385
Net Weight , kg	2,1
Gross Weight , kg	2,5
