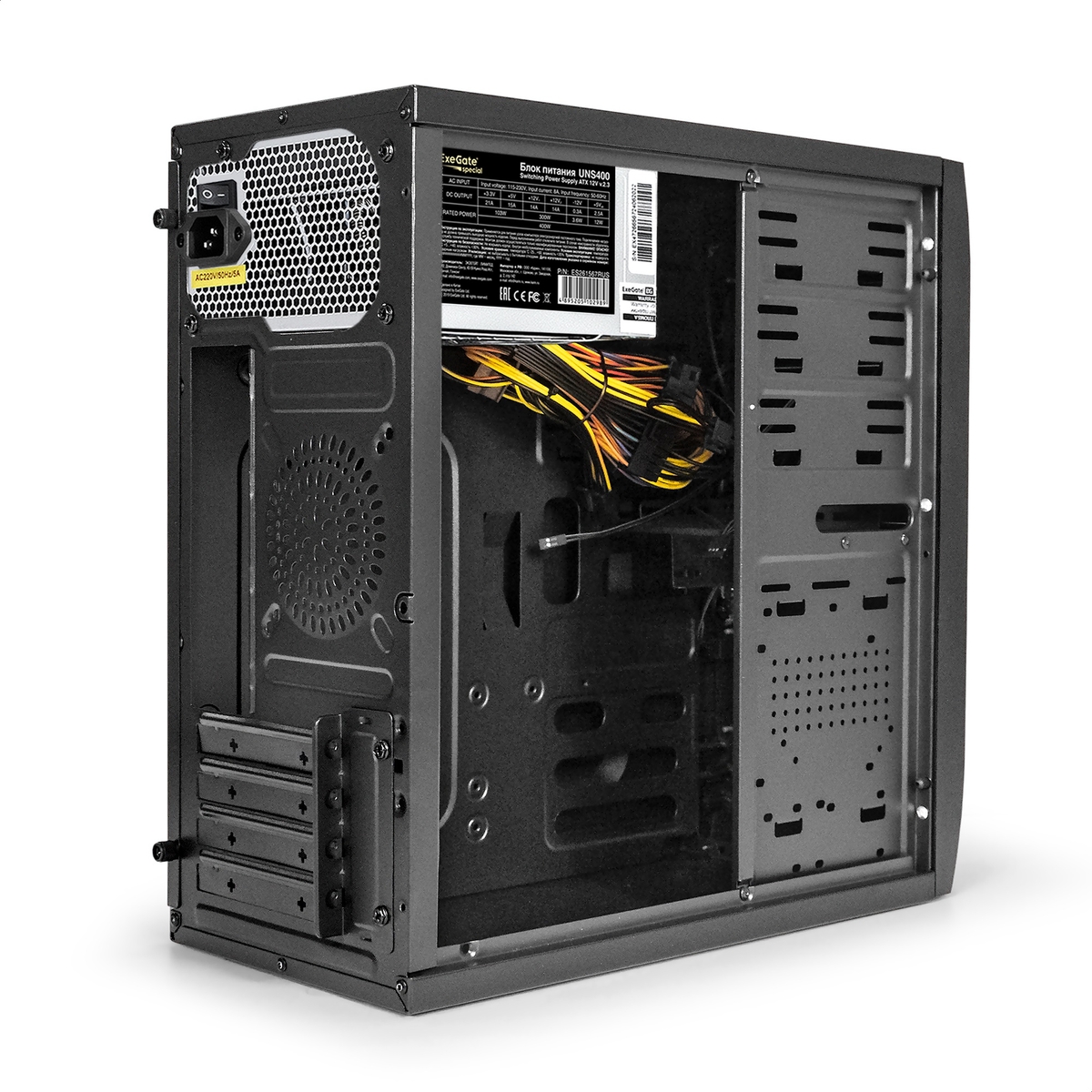

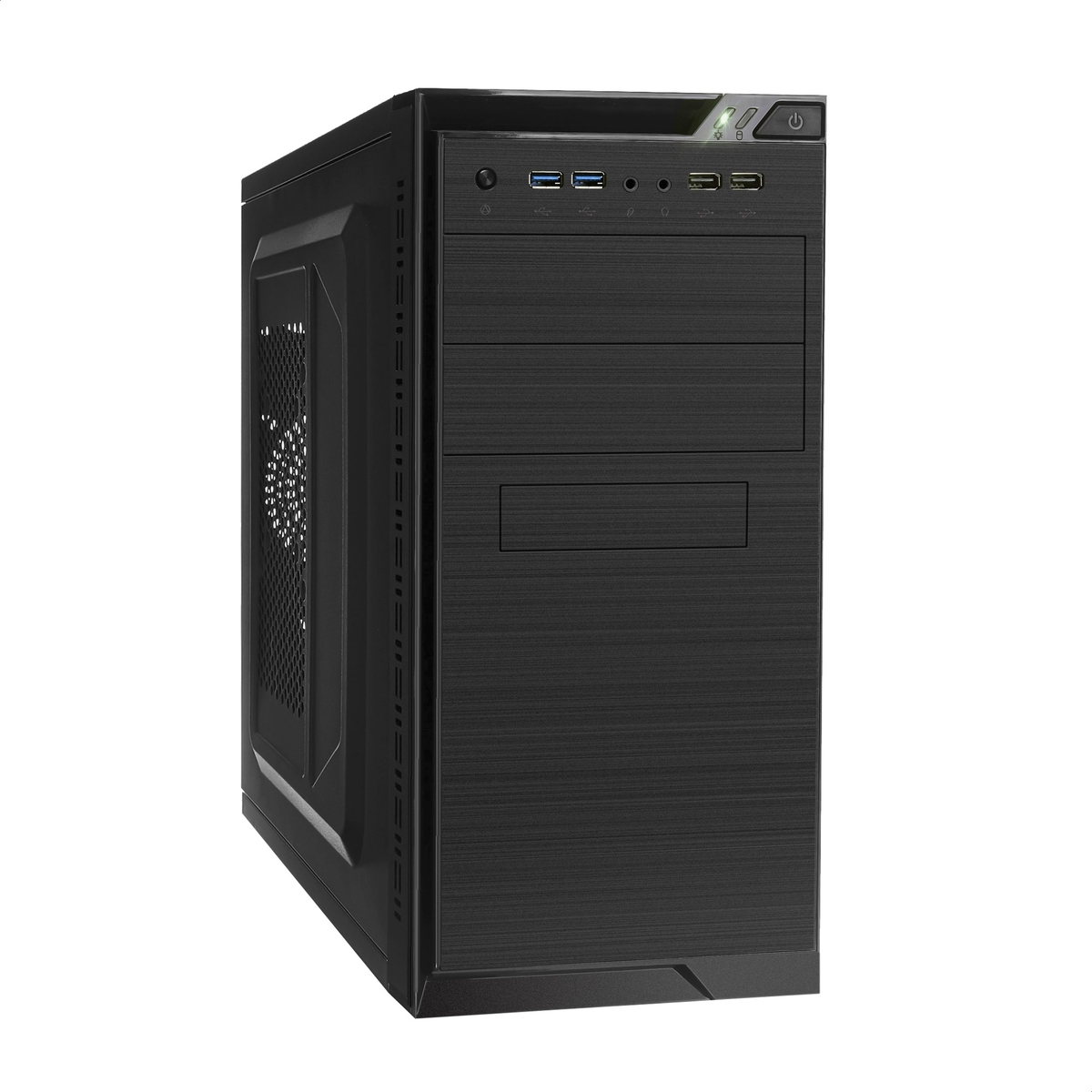

Minitower ExeGate QA-412U-UNS400

Specification

Cases Features
Model	QA-412U-UNS400
Case Type	MiniTower
Motherboard Support	mATX
Chassis Material	Steel
Material Thickness, mm	0,45
Material of front panel	Plastic
Material of left panel	Steel
Material of right panel	Steel
Screwless Access	Yes
Number of screws for mounting the side panel, pcs	4
Hinge For The Lock	Yes
Case Color	Black
Chassis Color	Black
Power
PSU Type	ATX
Power supply location	At the top of the rear side
PSU models	ExeGate UNS400
PSU, W	400
Construction
External 5,25" Drive Bay	2
External 3,5" Drive Bay	1
Internal 3,5" Drive Bay	2
Internal 2,5" Drive Bay	1 (1 instead of 1 internal 3,5")
Expansion Slots	4
Cooling System
Places for installation on the rear panel	8 cm x 1 or 9,2 cm x 1
Places to install on the side panel	8 cm x 1 or 12 cm x 1
Recommended ExeGate fans	8 cm, 12 cm

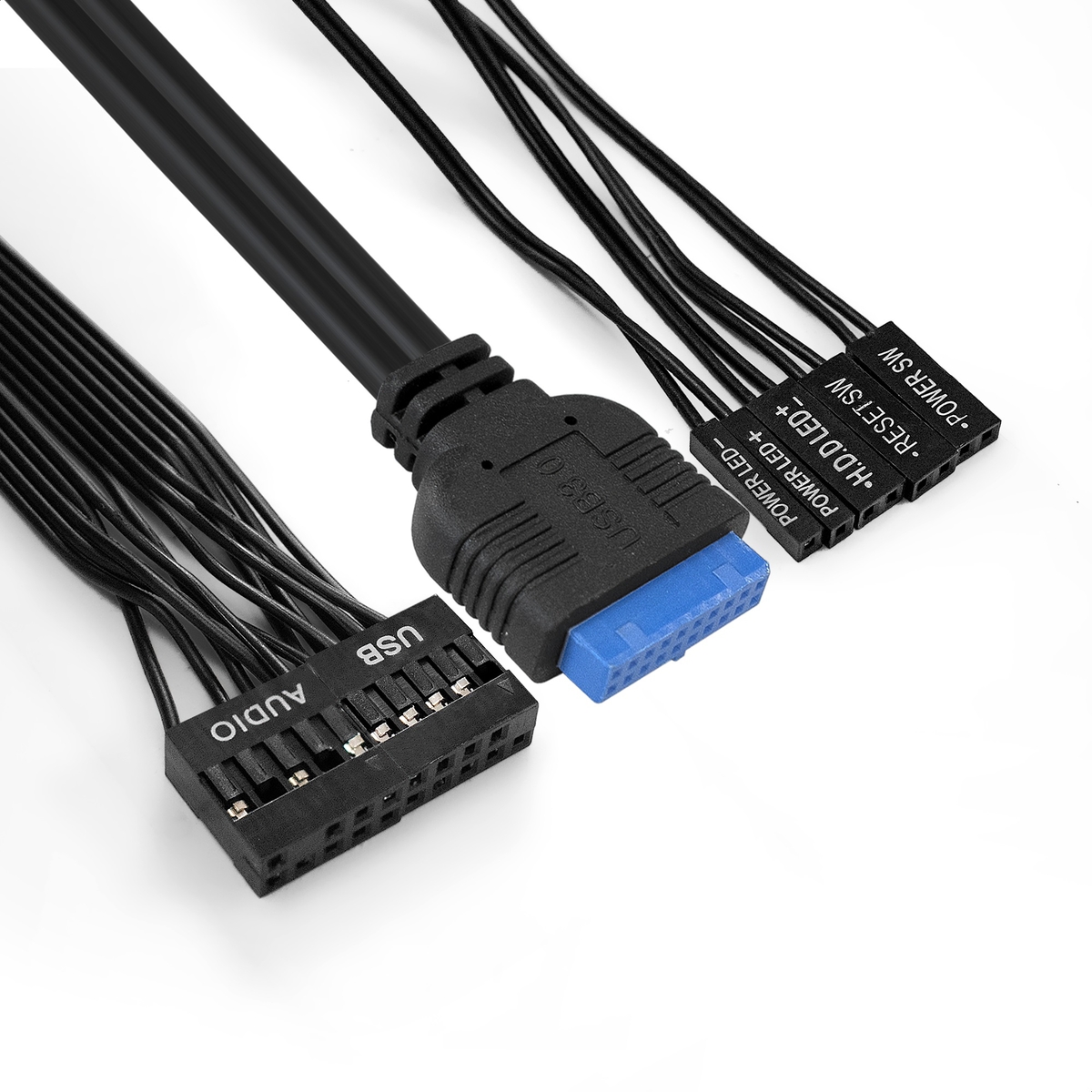

Interfaces
Interface location	At the top of the front panel
USB 2.0 Type-A	2
USB 3.2 Gen1 Type-A	2
Audio I/O Ports	HD Audio 2 x 3.5mm
Other parameters
Max. motherboard length, mm	244
Max. height of the CPU fan, mm	140
Max. PSU length, mm	180
Max. PSU length with drive opposite, mm	155
Max. SVGA length, mm	270
Chassis dimensions
Width, mm	175
Height, mm	368
Depth, mm	325
Case Dimensions
Width, mm	190
Height, mm	368
Depth, mm	370
Carton Dimensions
Width, mm	210
Height, mm	415
Depth, mm	405
Net Weight , kg	2,95
Gross Weight , kg	3,47
