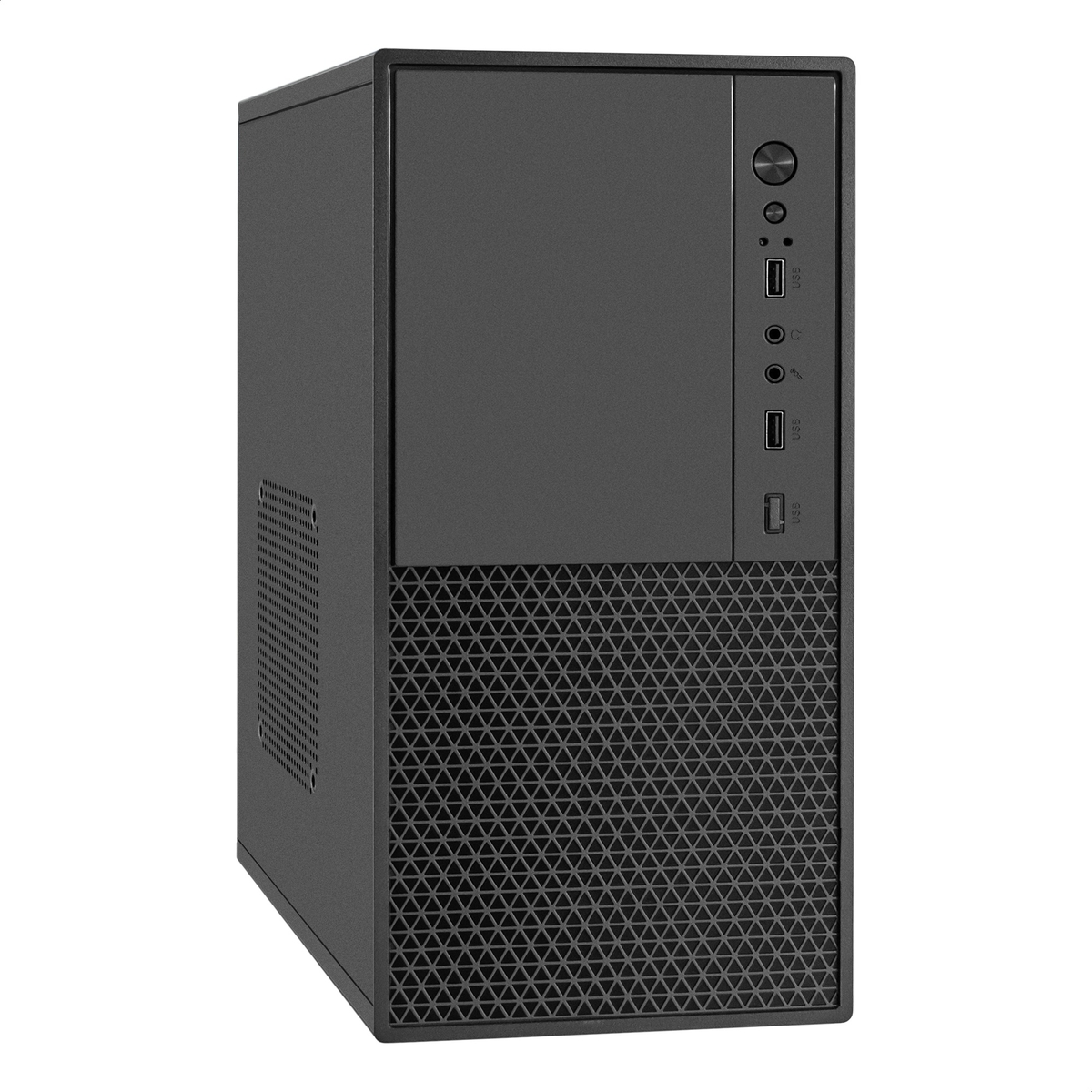

Minitower ExeGate BAA-308M-UNS350
| Modification | P/N | EAN |
| w/o PSU | EX299069 | 4895205185999 |
| 350W/AAA | EX299070 | 4895205186002 |
| 350W/UNS | EX299232 | 4895205188938 |
| 400W/AAA | EX299071 | 4895205186019 |
| 400W/UNS | EX299233 | 4895205188945 |
| 450W/AAA | EX299072 | 4895205186026 |
| 450W/UNS | EX299234 | 4895205188952 |
| 500W/AA | EX299403 | 4895205188822 |
| 500W/UNS | EX299235 | 4895205188969 |
Specification
| Cases Features | |
| Model | BAA-308M-UNS350 |
| Case Type | MiniTower |
| Motherboard Support | mATX |
| Chassis Material | Steel |
| Material Thickness, mm | 0,4 |
| Material of front and side panels | Plastic / Steel |
| Material of front panel | Plastic |
| Material of left panel | Steel |
| Material of right panel | Steel |
| Number of screws for mounting the side panel, pcs | 4 |
| Hinge For The Lock | Yes |
| Case Color | Black |
| Chassis Color | Black |
| Power | |
| PSU Type | ATX |

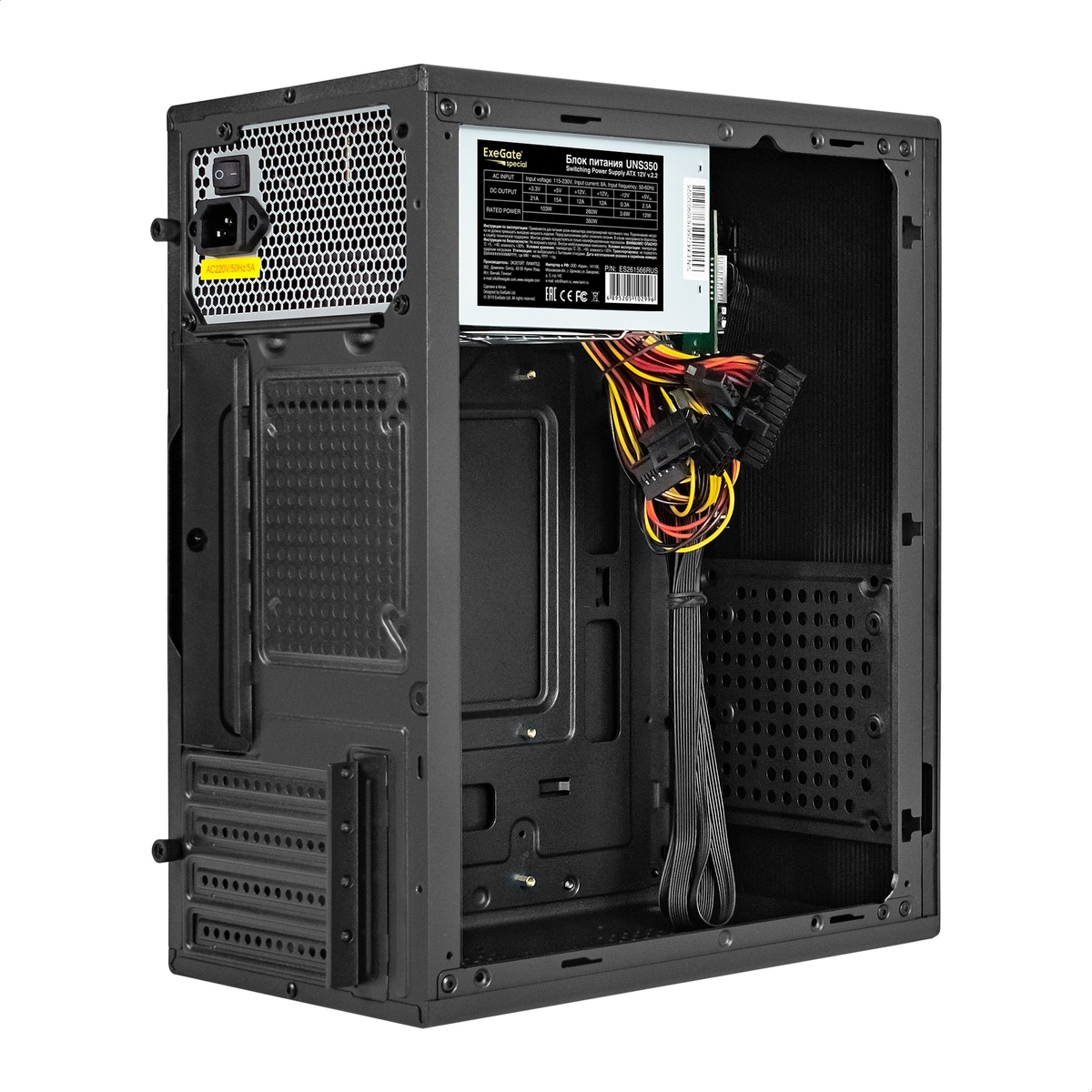

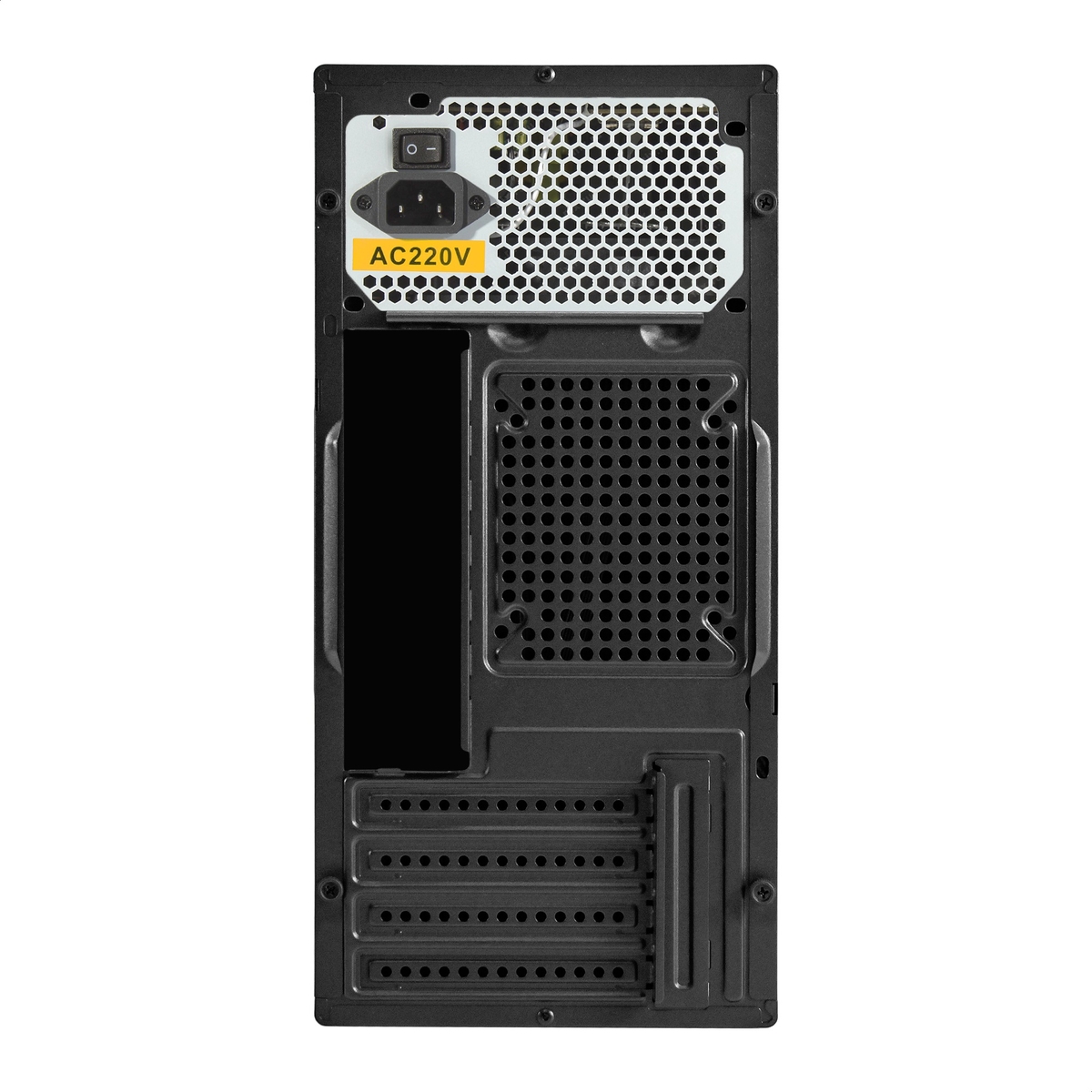

| Power supply location | At the top of the rear side |

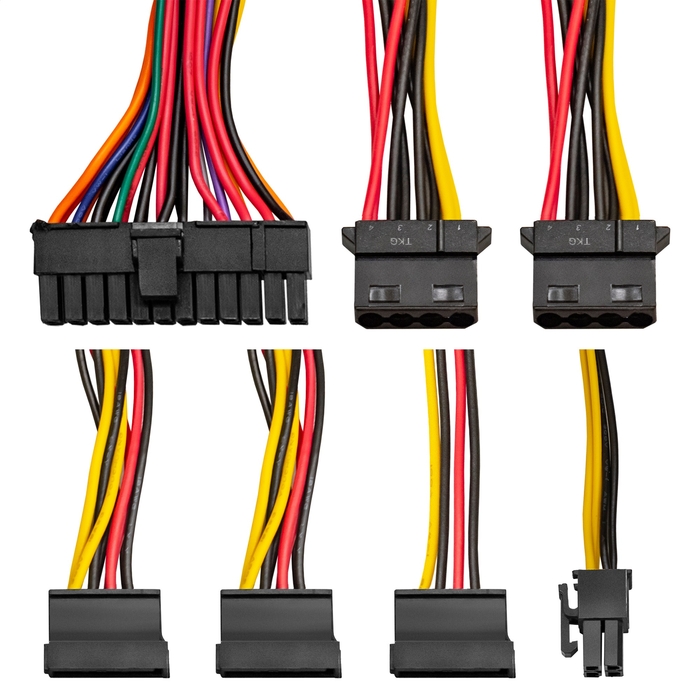

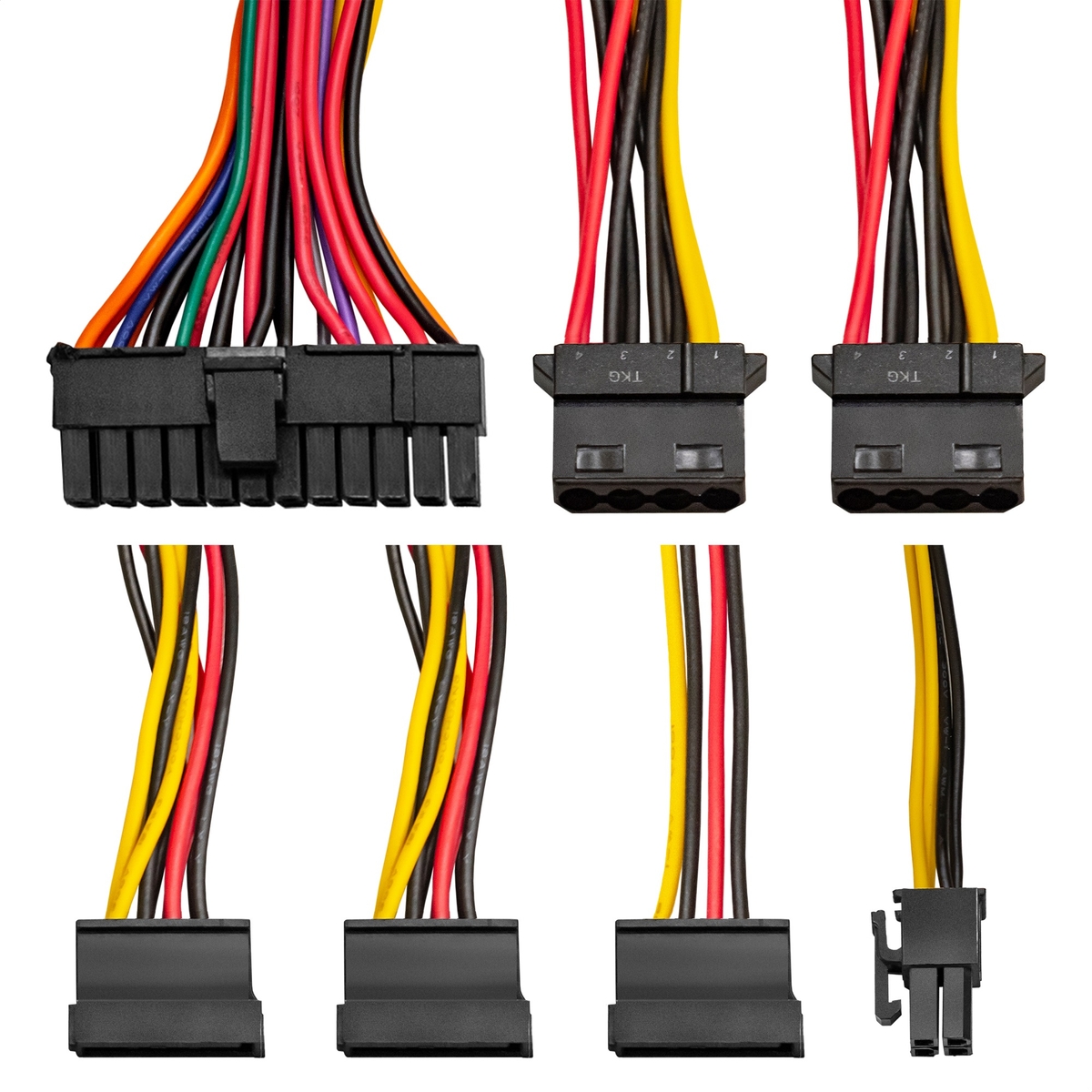

| PSU models | ExeGate UNS350 |
| PSU, W | 350 |
| Construction | |
| Internal 3,5" Drive Bay | 1 (Instead of 120mm fan) |
| Internal 2,5" Drive Bay | 2 (1 instead of 1x3.5") |
| Expansion Slots | 4 |
| Cooling System | |
| Places for installation on the front panel | 1 x 12 cm |
| Places for installation on the rear panel | 1 x 8/9 cm |

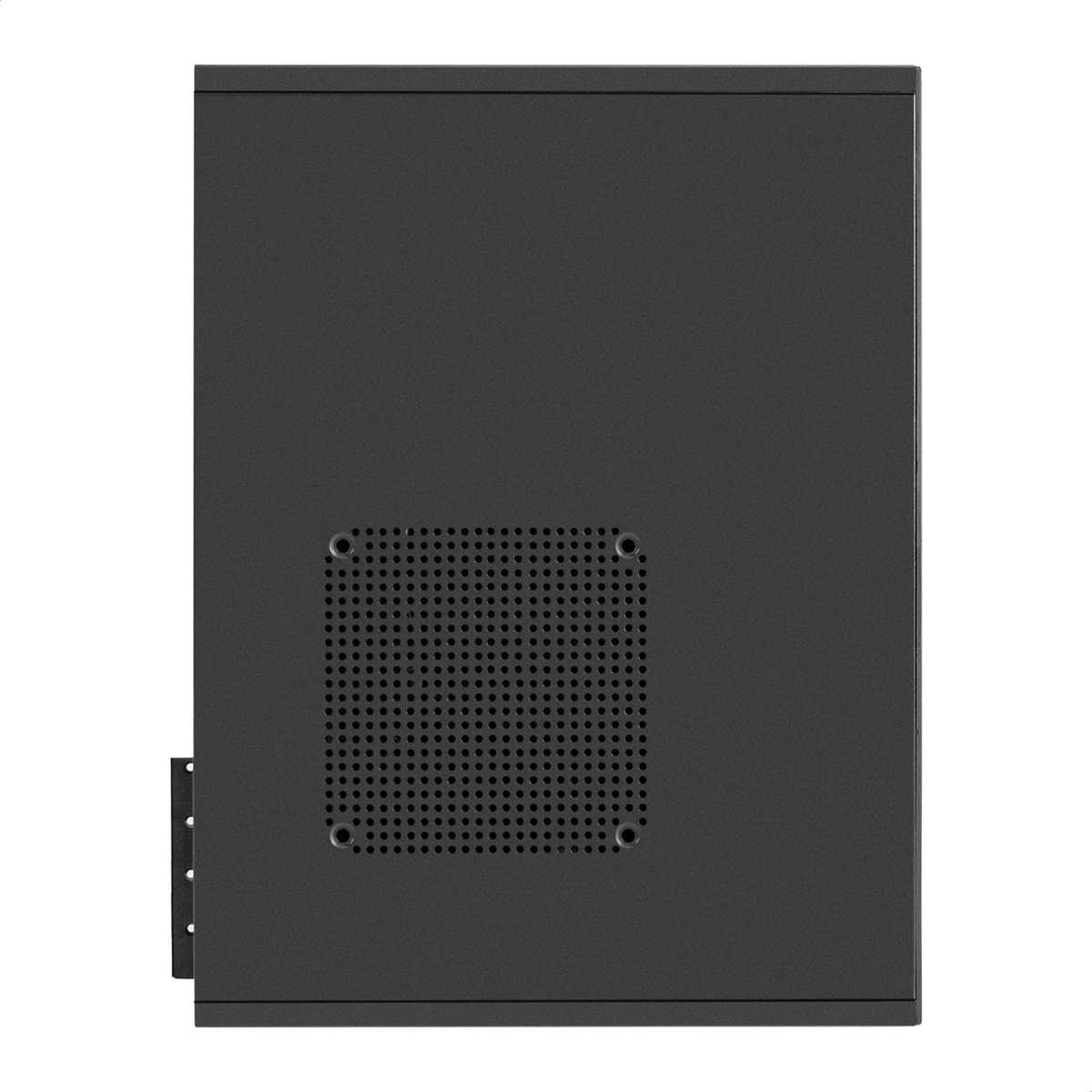

| Places to install on the side panel | 1 x 12 cm |
| Recommended ExeGate fans | 8 cm, 9 cm, 12 cm |

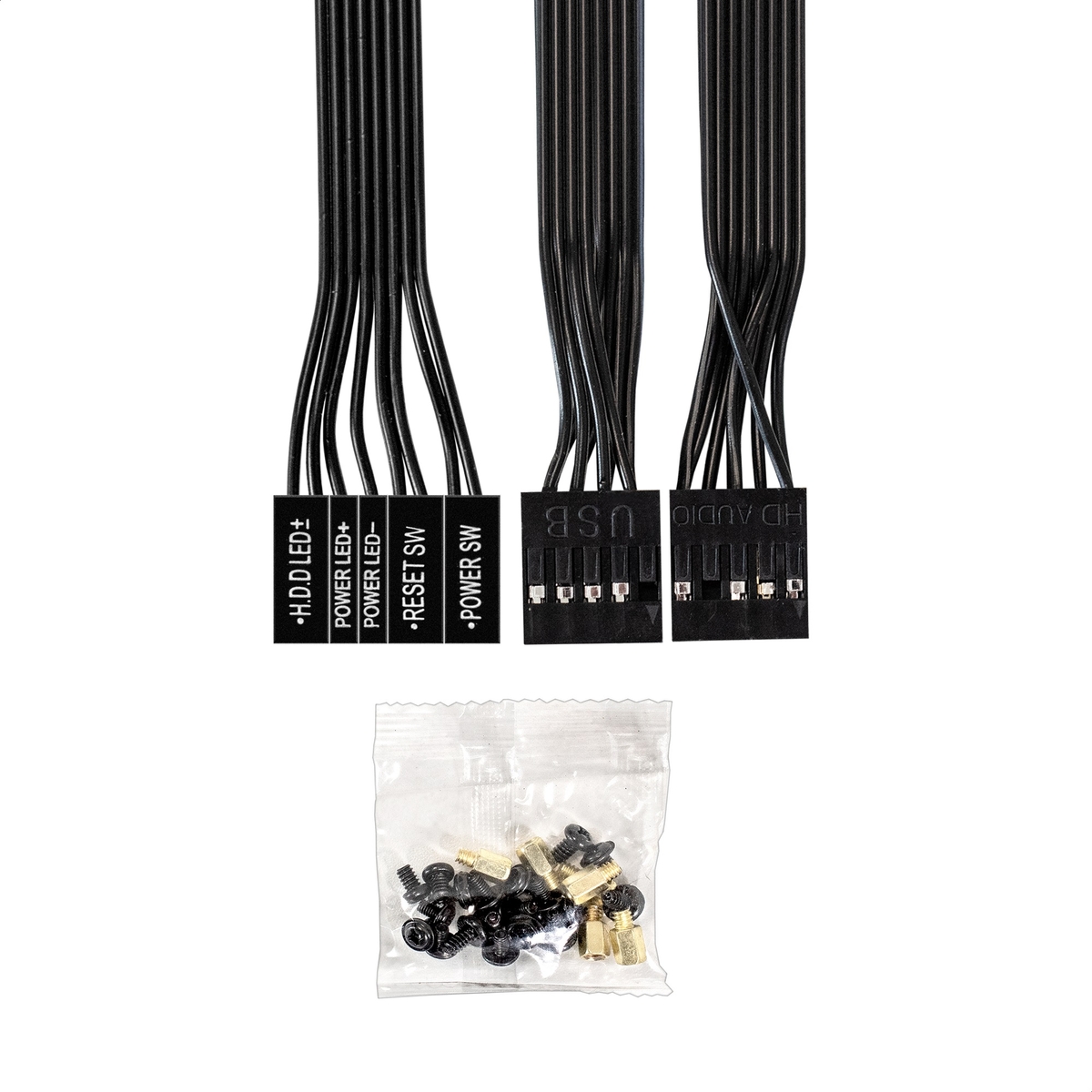

| Interfaces | |

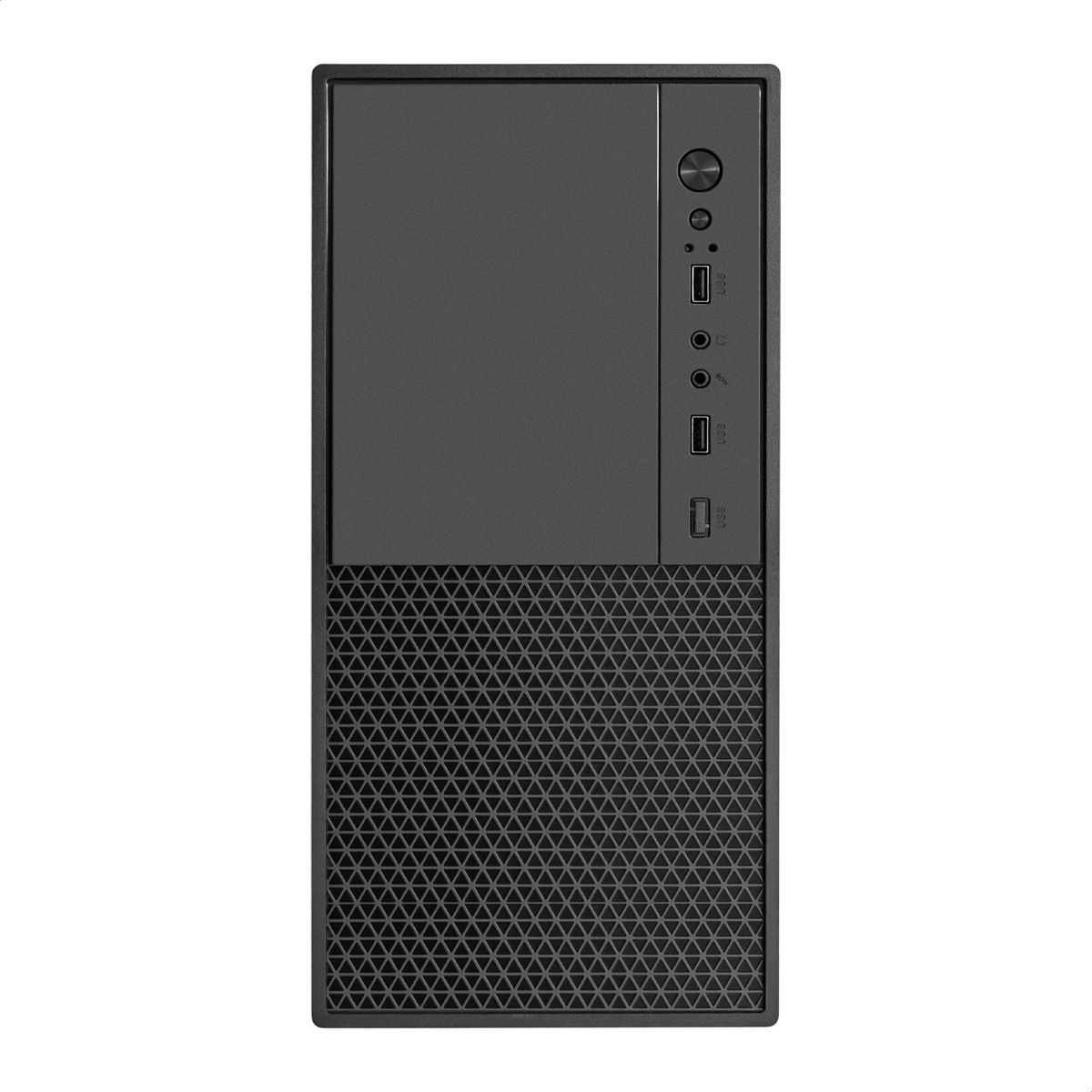

| Interface location | At the top of the front panel |
| USB 2.0 Type-A | 2 |
| Audio I/O Ports | HD Audio 2 x 3.5mm |
| Other parameters | |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 140 |
| Max. PSU length, mm | 180 |
| Max. SVGA length, mm | 240 |
| Chassis dimensions | |
| Width, mm | 168 |
| Height, mm | 350 |
| Depth, mm | 255 |
| Case Dimensions | |
| Width, mm | 170 |
| Height, mm | 350 |
| Depth, mm | 268 |
| Carton Dimensions | |
| Width, mm | 205 |
| Height, mm | 310 |
| Depth, mm | 385 |
| Net Weight , kg | 2,2 |
| Gross Weight , kg | 2,6 |
