Minitower ExeGate BAA-308MU2-UNS400
| Modification | P/N | EAN |
| w/o PSU | EX299073 | 4895205186033 |
| 350W/AAA | EX299074 | 4895205186040 |
| 350W/UNS | EX299236 | 4895205188846 |
| 400W/AAA | EX299075 | 4895205186057 |
| 400W/UNS | EX299237 | 4895205188853 |
| 450W/AAA | EX299076 | 4895205186064 |
| 450W/UNS | EX299238 | 4895205188860 |
| 500W/AA | EX299404 | 4895205188839 |
| 500W/UNS | EX299239 | 4895205188877 |
Specification
| Cases Features | |
| Model | BAA-308MU2-UNS400 |
| Case Type | MiniTower |
| Motherboard Support | mATX |
| Chassis Material | Steel |
| Material Thickness, mm | 0,45 |
| Material of front and side panels | Plastic / Steel |
| Material of front panel | Plastic |
| Material of left panel | Steel |
| Material of right panel | Steel |
| Screwless Access | Yes |
| Number of screws for mounting the side panel, pcs | 4 |
| Hinge For The Lock | Yes |
| Case Color | Black |
| Chassis Color | Black |
| Power | |
| PSU Type | ATX |

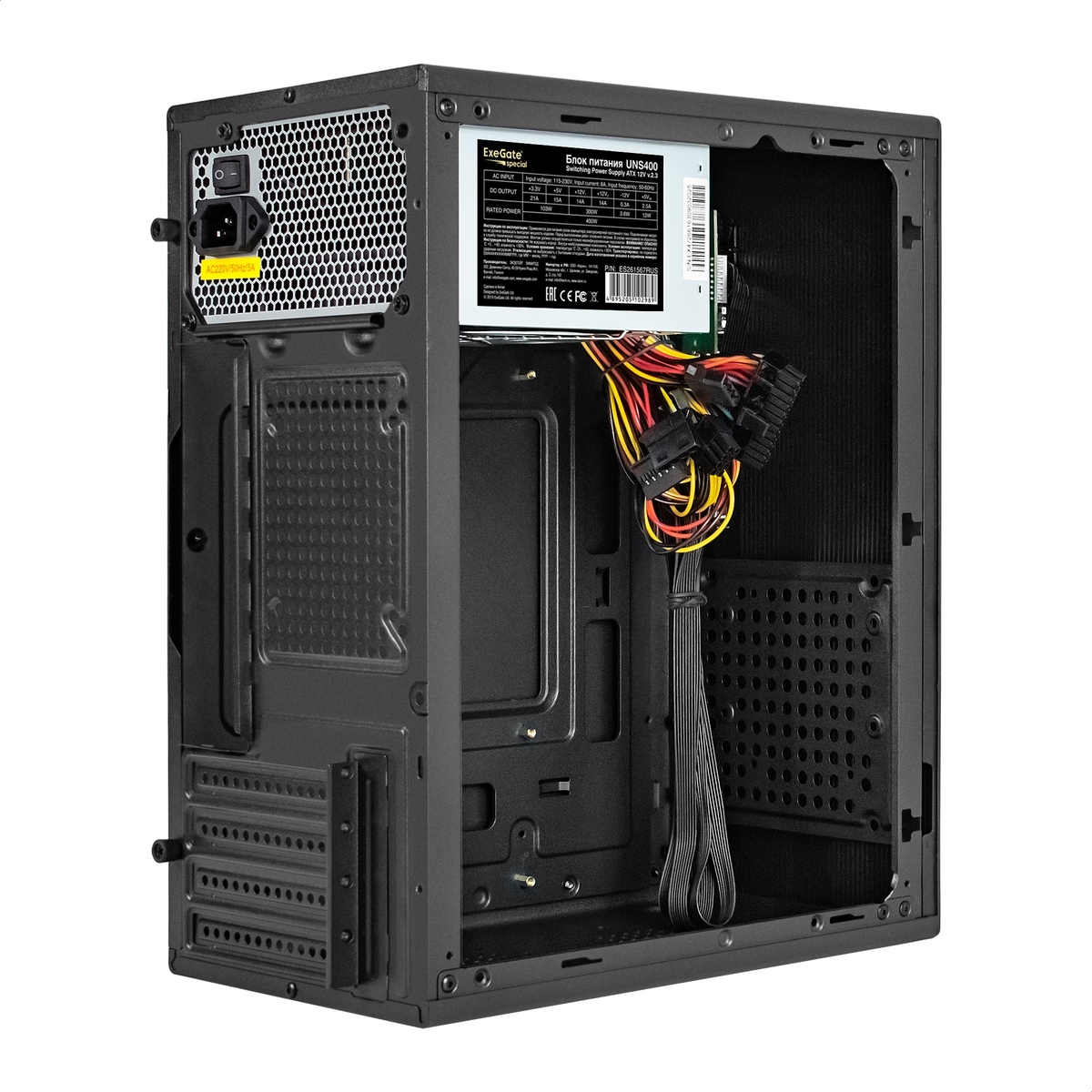

| Power supply location | At the top of the rear side |

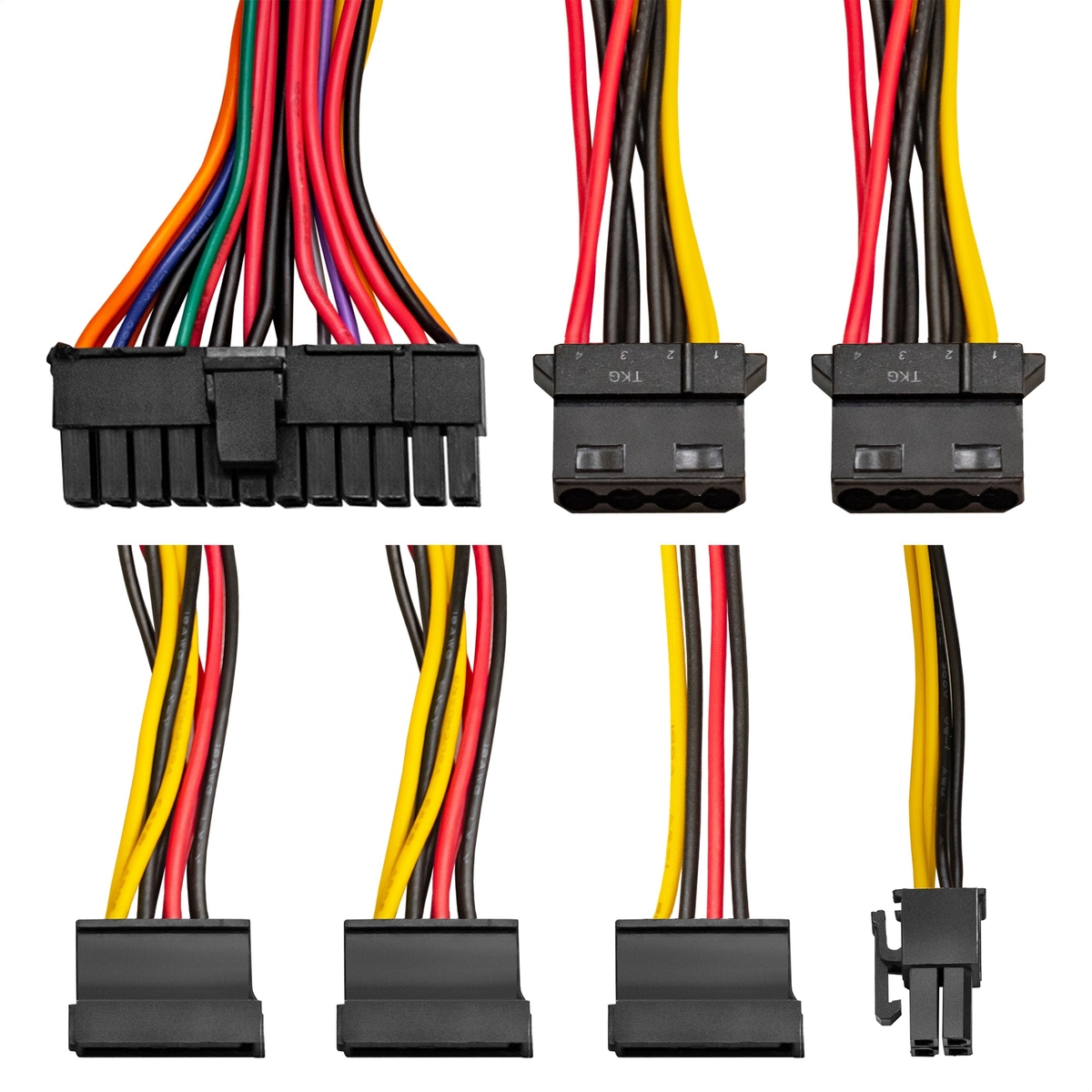

| PSU models | ExeGate UNS400 |
| PSU, W | 400 |
| Construction | |
| Internal 3,5" Drive Bay | 2 |
| Internal 2,5" Drive Bay | 2 |
| Expansion Slots | 4 |
| Cooling System | |

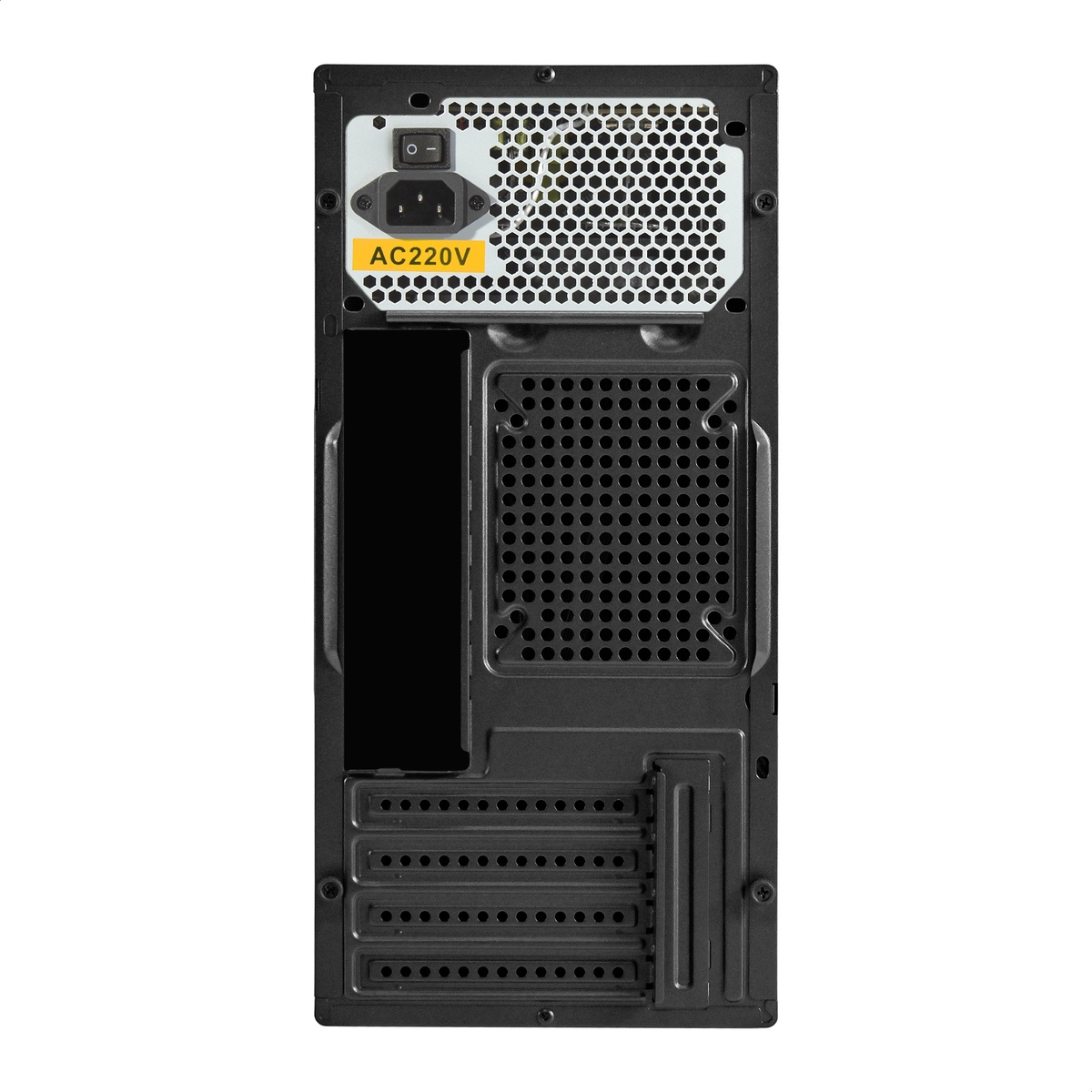

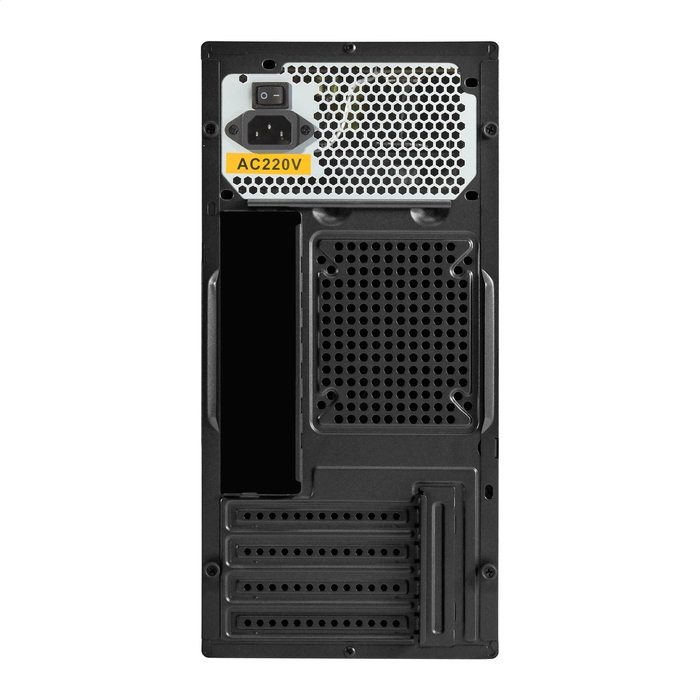

| Places for installation on the rear panel | 1 x 8/9 cm |

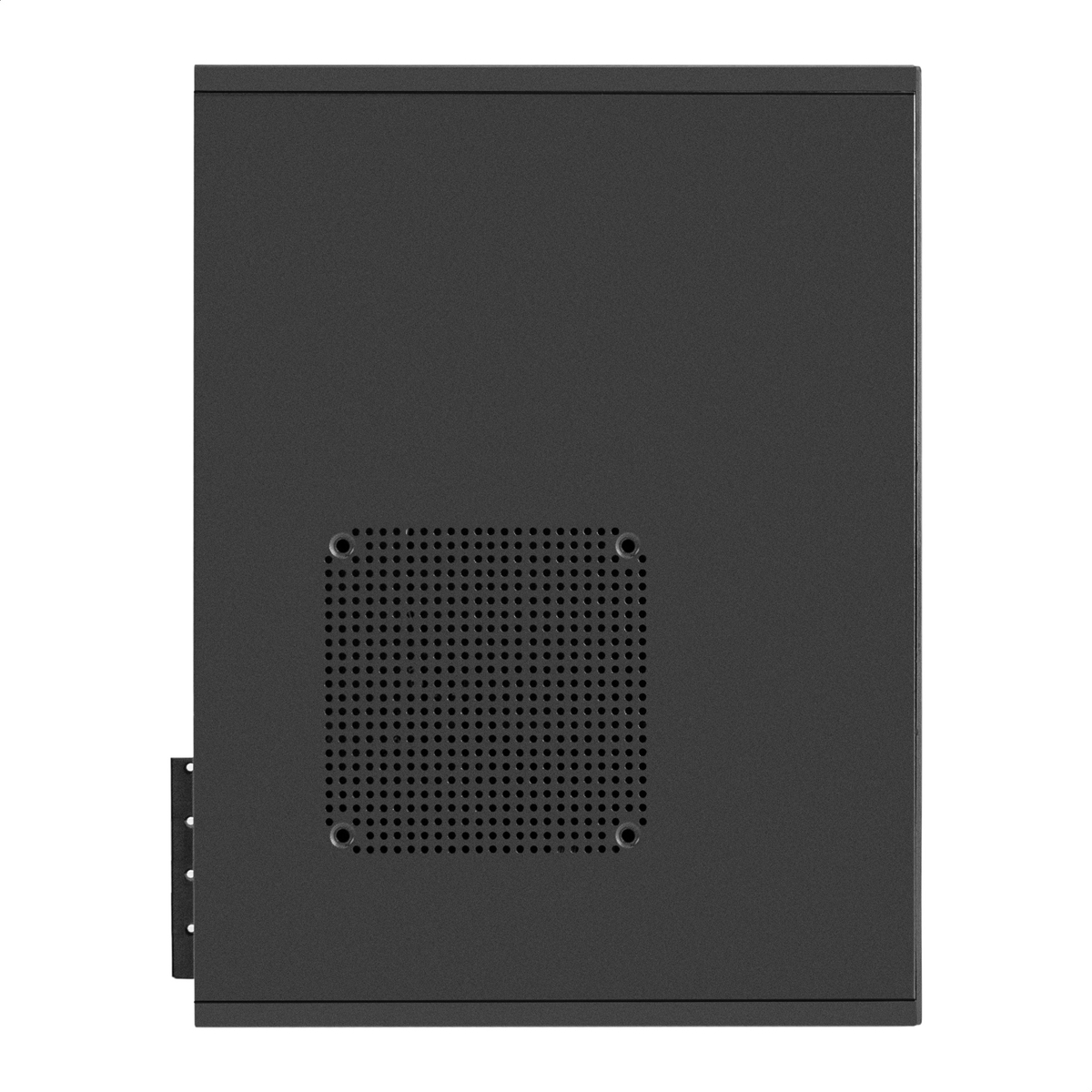

| Places to install on the side panel | 1 x 12 cm |
| Recommended ExeGate fans | 8 cm, 9 cm, 12 cm |
| Interfaces | |

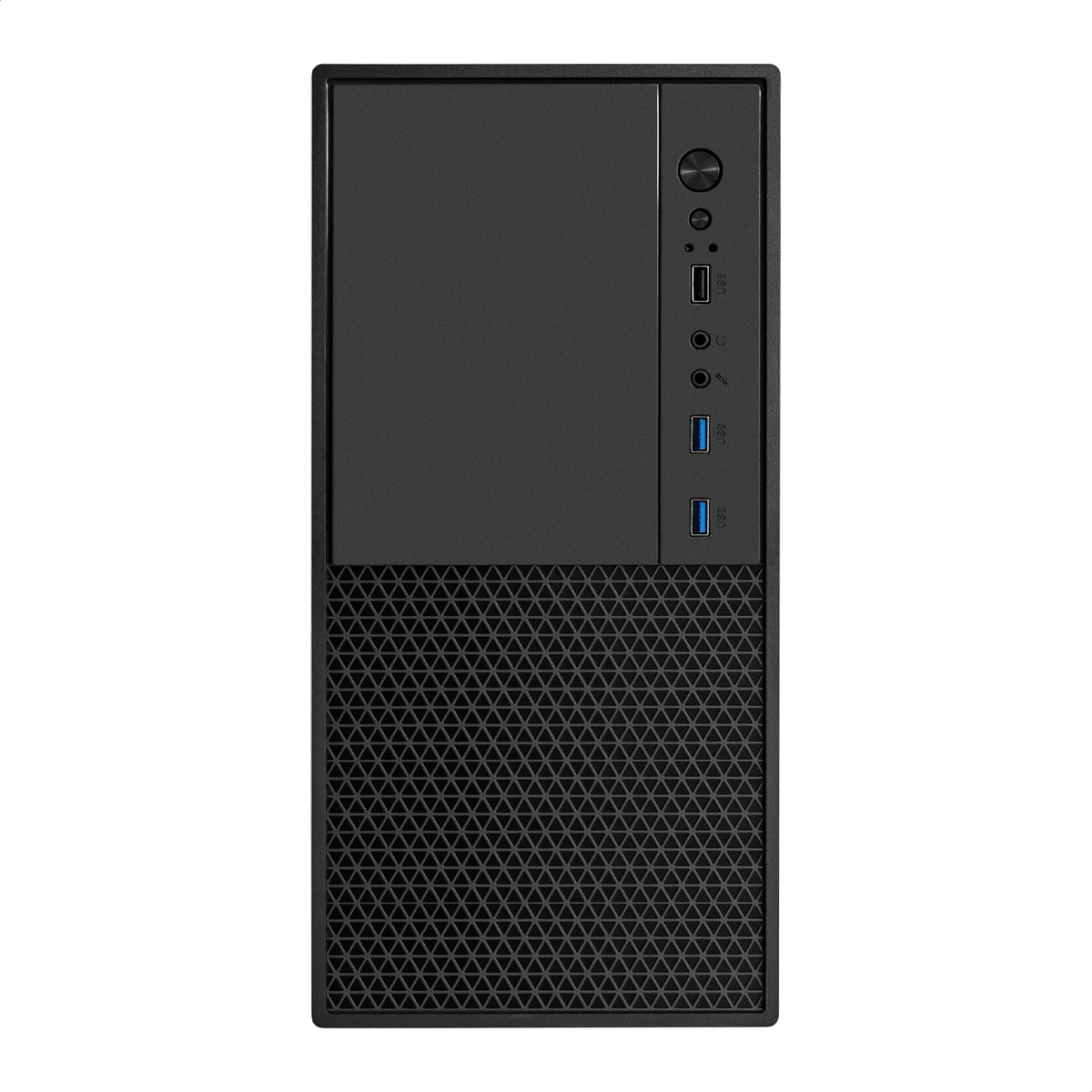

| Interface location | At the top of the front panel |

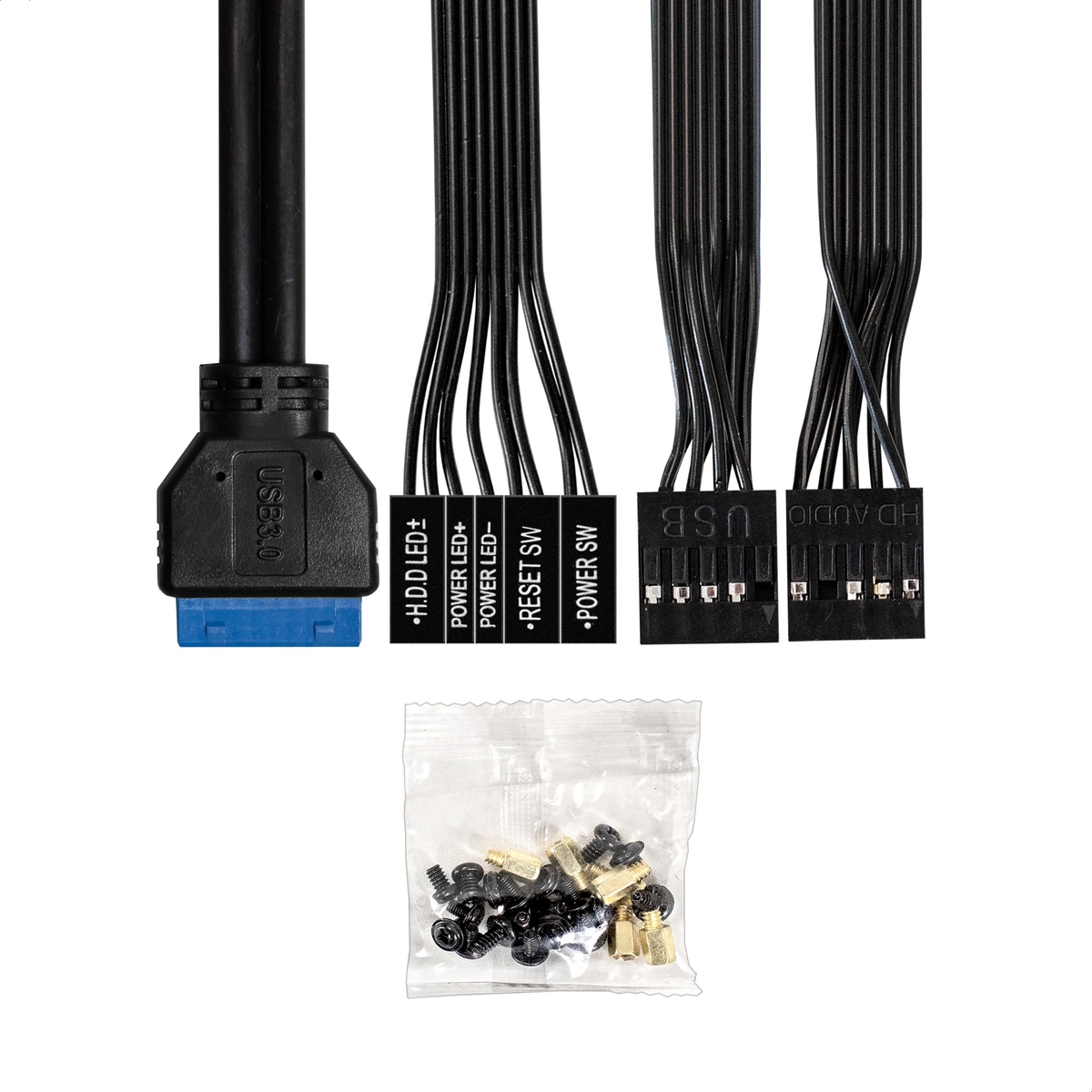

| USB 2.0 Type-A | 1 |
| USB 3.2 Gen1 Type-A | 2 |
| Audio I/O Ports | HD Audio 2 x 3.5mm |
| Other parameters | |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 140 |
| Max. PSU length, mm | 180 |
| Max. SVGA length, mm | 240 |
| Max. SVGA length with drive opposite, mm | 220 |
| Chassis dimensions | |
| Width, mm | 168 |
| Height, mm | 350 |
| Depth, mm | 260 |
| Case Dimensions | |
| Width, mm | 169 |
| Height, mm | 353 |
| Depth, mm | 274 |
| Carton Dimensions | |
| Width, mm | 205 |
| Height, mm | 320 |
| Depth, mm | 385 |
| Net Weight , kg | 2,35 |
| Gross Weight , kg | 2,75 |
