Series MA

Optional accessories Accessories

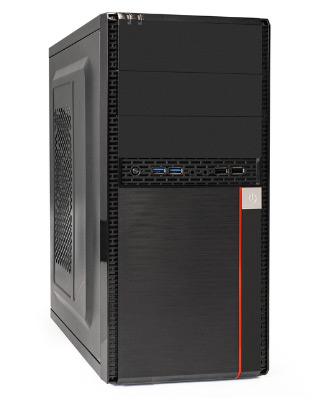

Model MA-371X
MA-371X
MA-372UX
MA-372UX

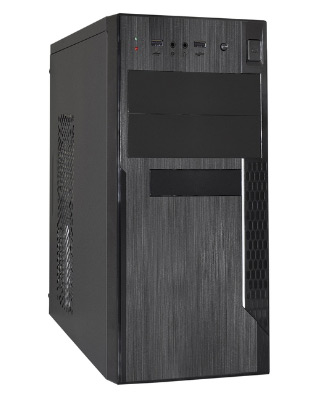

MA-373X
MA-373X
Cases Features
Case TypeMiniTowerMiniTowerMiniTower
Motherboard SupportmATXmATXmATX
Chassis MaterialSteelSteelSteel
Material Thickness, mm0,450,60,6
Material of front and side panelsPlastic / Steel--
Screwless AccessYesYesYes
Number of screws for mounting the side panel, pcs4--
Hinge For The LockYesYesYes
Case ColorBlackBlackBlack
Chassis ColorSilverSilverSilver
Power
PSU TypeATXATXATX
Power supply locationAt the top of the rear sideAt the top of the rear sideAt the top of the rear side
PSU models*UN350, UN400, UN450, UN500, UN600, UNS350, UNS400, UNS450, UNS500UN350, UN400, UN450, UN500, UN600, UNS350, UNS400, UNS450, UNS500UN350, UN400, UN450, UN500, UN600, UNS350, UNS400, UNS450, UNS500
Recommended ExeGate PSUSeries UN, Special UNSSeries UN, Special UNSSeries UN, Special UNS
Construction
External 5,25" Drive Bay211
External 3,5" Drive Bay-11
Internal 3,5" Drive Bay344
Internal 2,5" Drive Bay1 (1 instead 1 internal 3.5")22
Expansion Slots444
Cooling System
Places for installation on the rear panel8 cm x 1 or 9,2 cm x 19,2 cm x 39,2 cm x 3
Places to install on the side panel8 cm x 1 or 12 cm x 1--
Interfaces
Interface locationIn the middle of the front panelAt the top of the front panelAt the top of the front panel
USB 2.0 Type-A222
USB 3.2 Gen1 Type-A22-
Audio I/O Ports2 x 3.5mm2 x 3.5mm2 x 3.5mm
Other parameters
Max. motherboard length, mm256244244
Max. height of the CPU fan, mm130140140
Max. PSU length, mm194230230
Max. PSU length with drive opposite, mm140210210
Max. SVGA length, mm300220220
Max. SVGA length with drive opposite, mm195190190
Chassis dimensions
Width, mm175175175
Height, mm366365365
Depth, mm330380380
Case Dimensions
Width, mm185175175
Height, mm370370370
Depth, mm370420420
Carton Dimensions
Width, mm215210210
Height, mm415415415
Depth, mm405460460
Gross Weight , kg2,472,92,9
PSU models, PN/EAN
w/o PSUEX277439
4895205106970
EX283234
4895205116511
EX283240
4895205117181
350W/UNEX277434
4895205106925
EX283235
4895205116566
EX283241
4895205117136
350W/UNSEX299300
4895205188129
EX299304
4895205189164
EX299309
4895205188167
400W/UNEX277435
4895205106932
EX283236
4895205116559
EX283242
4895205117143
400W/UNSEX299301
4895205188136
EX299305
4895205189171
EX299310
4895205188174
450W/UNEX277436
4895205106949
EX283237
4895205116542
EX283243
4895205117150
450W/UNSEX299302
4895205188143
EX299306
4895205189188
EX299311
4895205188181
500W/UNEX277437
4895205106956
EX283238
4895205116535
EX283244
4895205117167
500W/UNSEX299303
4895205188150
EX299307
4895205189195
EX299312
4895205188198
600W/UNEX277438
4895205106963
EX283239
4895205116528
EX283245
4895205117174
* At a customer's request Computer Cases can be completed with any PSU
