Series XP
| Optional accessories | Accessories |

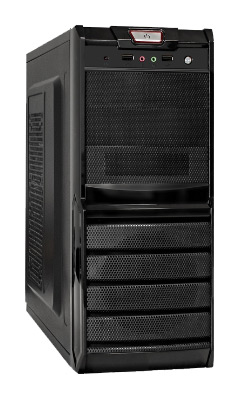

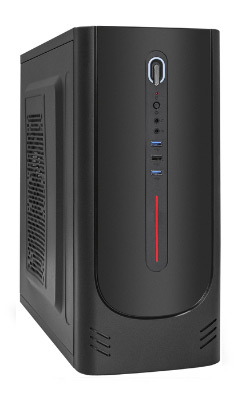

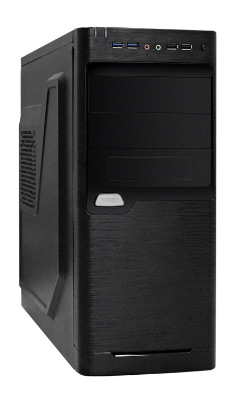

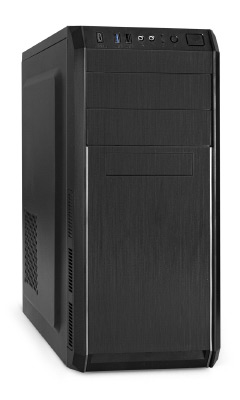

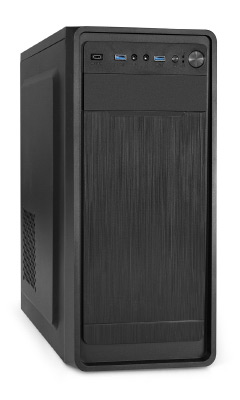

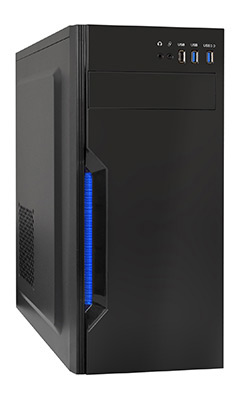

| Model |  XP-329S |  XP-330U |  XP-332 |  XP-332UC |  XP-333U |  XP-334UC |  XP-340U |
| Cases Features | |||||||
| Case Type | MidiTower | MidiTower | MidiTower | MidiTower | MidiTower | MidiTower | MidiTower |
| Motherboard Support | ATX | ATX | ATX | ATX | ATX | ATX | ATX |
| Chassis Material | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Material Thickness, mm | 0,5 | 0,5 | 0,52 | 0,5 | 0,5 | 0,5 | 0,48 |
| Material of front and side panels | - | - | - | - | - | - | Plastic / Steel |
| Screwless Access | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of screws for mounting the side panel, pcs | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Hinge For The Lock | Yes | Yes | - | - | - | - | Yes |
| Case Color | Black | Black | Black | Black | Black | Black | Black |
| Chassis Color | Black | Black | Black | Black | Black | Black | Black |
| Power | |||||||
| PSU Type | ATX | ATX | ATX | ATX | ATX | ATX | ATX |
| Power supply location | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side |
| PSU models* | XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500 | XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500 | XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500 | XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500 | XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500 | XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500 | XP350, XP400, XP450, XP500, XP550, XP600, UNS350, UNS400, UNS450, UNS500 |
| Recommended ExeGate PSU | Series XP, Special UNS | Series XP, Special UNS | Series XP, Special UNS | Series XP, Special UNS | Series XP, Special UNS | Series XP, Special UNS | Series XP, Special UNS |
| Construction | |||||||
| External 5,25" Drive Bay | 2 | 2 | 1 | 1 | 1 | 1 | - |
| External 3,5" Drive Bay | 1 | 1 (instead 1 internal 5.25") | - | - | - | - | - |
| Internal Drive Bay 5,25" | 1 | 2 | - | - | - | - | 3 |
| Internal 3,5" Drive Bay | 2 | 5 | 2 | 2 | 2 | 2 | 2 |
| Internal 2,5" Drive Bay | 3 | 1 | 3 (1 instead 1 internal 3.5") | 3 (1 instead 1 internal 3.5") | 3 (1 instead 1 internal 3.5") | 2 | 3 |
| Expansion Slots | 6 | 6 | 7 | 7 | 7 | 7 | 6 |
| Cooling System | |||||||
| Places for installation on the front panel | 12 cm x 1 | - | 12 cm x 2 | 12 cm x 2 | 12 cm x 2 | - | - |
| Places for installation on the rear panel | 8 cm x 1 or 9,2 cm x 1 | 8 cm x 1 or 9,2 cm x 1 | 12 cm x 1 | 12 cm x 1 | 12 cm x 1 | 12 cm x 1 | 1 x 8 or 1 x 9,2 cm |
| Places to install on the side panel | 8 cm x 2 or 12 cm x 2 | 8 cm x 1 or 12 cm x 1 | 12 cm x 1 | 12 cm x 1 | 12 cm x 1 | 12 cm x 1 | 2 x 8 or 2 x 12 cm |
| Recommended ExeGate fans | - | - | - | - | - | - | 8 cm, 9 cm, 12 cm |
| Interfaces | |||||||
| Interface location | At the top of the front panel | At the top of the front panel | At the top of the front panel | At the top of the front panel | At the top of the front panel | At the top of the front panel | At the middle of the front panel |
| USB 2.0 Type-A | 2 | 2 | 2 | - | 1 | 1 | 1 |
| USB 3.2 Gen1 Type-A | - | 2 | - | 2 | 2 | 1 | 2 |
| USB 3.2 Gen1 Type-C | - | - | - | 1 | - | 1 | - |
| Audio I/O Ports | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm |
| Other parameters | |||||||
| Max. motherboard length, mm | 244 | 244 | 244 | 244 | 244 | 244 | 244 |
| Max. height of the CPU fan, mm | 140 | 135 | 155 | 155 | 155 | 140 | 140 |
| Max. PSU length, mm | 210 | 150 | 210 | 210 | 210 | 210 | 160 |
| Max. PSU length with drive opposite, mm | 200 | 150 | 180 | 180 | 180 | 150 | - |
| Max. SVGA length, mm | 210 | 240 | 320 | 320 | 300 | 330 | 240 |
| Max. SVGA length with drive opposite, mm | - | 240 | 250 | 250 | 250 | - | 180 |
| Chassis dimensions | |||||||
| Width, mm | 175 | 175 | 180 | 180 | 180 | 180 | 175 |
| Height, mm | 410 | 410 | 410 | 410 | 410 | 410 | 408 |
| Depth, mm | 350 | 380 | 340 | 340 | 340 | 340 | 350 |
| Case Dimensions | |||||||
| Width, mm | 185 | 185 | 195 | 195 | 195 | 195 | 183 |
| Height, mm | 410 | 415 | 415 | 415 | 415 | 413 | 412 |
| Depth, mm | 410 | 435 | 385 | 385 | 385 | 390 | 405 |
| Carton Dimensions | |||||||
| Width, mm | 210 | 210 | 225 | 225 | 225 | 230 | 210 |
| Height, mm | 450 | 440 | 425 | 425 | 430 | 425 | 455 |
| Depth, mm | 450 | 460 | 460 | 460 | 460 | 460 | 440 |
| Gross Weight , kg | 2,5 | 3,27 | 3,5 | 3,5 | 3,5 | 3,5 | 3 |
| PSU models, PN/EAN | |||||||
| w/o PSU | EX278402 4895205108134 | EX272731 4895205106086 | EX283070 4895205115880 | EX287371 4895205125254 | EX283075 4895205115941 | EX287365 4895205125193 | EX292986 4895205132894 |
| 350W/UNS | EX299345 4895205186835 | EX299349 4895205186873 | EX299353 4895205186910 | EX299357 4895205186958 | EX299361 4895205186996 | EX299365 4895205187030 | EX299369 4895205187078 |
| 350W/XP | EX278395 4895205108189 | EX272726 4895205106031 | EX283069 4895205115835 | EX287372 4895205125261 | EX283076 4895205115897 | EX287366 4895205125209 | EX292987 4895205137295 |
| 400W/UNS | EX299346 4895205186842 | EX299350 4895205186880 | EX299354 4895205186927 | EX299358 4895205186965 | EX299362 4895205187009 | EX299366 4895205187047 | EX299370 4895205187085 |
| 400W/XP | EX278396 4895205108172 | EX272727 4895205106048 | EX283071 4895205115842 | EX287373 4895205125278 | EX283077 4895205115903 | EX287367 4895205125216 | EX292988 4895205137301 |
| 450W/UNS | EX299347 4895205186859 | EX299351 4895205186897 | EX299355 4895205186934 | EX299359 4895205186972 | EX299363 4895205187016 | EX299367 4895205187054 | EX299371 4895205187092 |
| 450W/XP | EX278398 4895205108165 | EX272728 4895205106055 | EX283072 4895205115859 | EX287374 4895205125285 | EX283078 4895205115910 | EX287368 4895205125223 | EX292989 4895205132900 |
| 500W/UNS | EX299348 4895205186866 | EX299352 4895205186903 | EX299356 4895205186941 | EX299360 4895205186989 | EX299364 4895205187023 | EX299368 4895205187061 | EX299372 4895205187108 |
| 500W/XP | EX278399 4895205108158 | EX272729 4895205106062 | EX283073 4895205115866 | EX287375 4895205125292 | EX283079 4895205115927 | EX287369 4895205125230 | EX292990 4895205132917 |
| 550W/XP | EX292991 4895205137318 | ||||||
| 600W/XP | EX278400 4895205108141 | EX272730 4895205106079 | EX283074 4895205115873 | EX287376 4895205125308 | EX283080 4895205115934 | EX287370 4895205125247 | EX292992 4895205137325 |
| * At a customer's request Computer Cases can be completed with any PSU | |||||||
