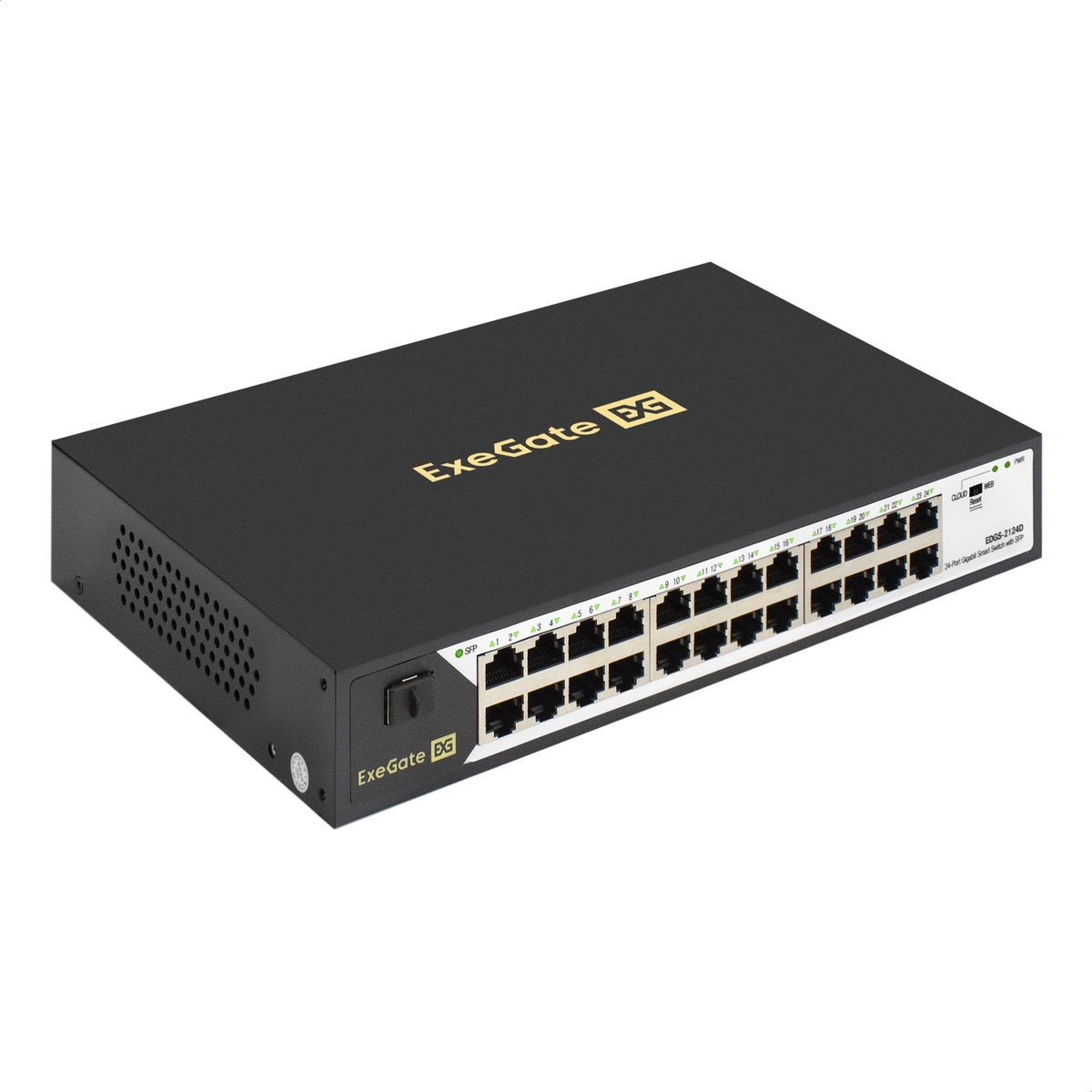

ExeGate EDGS-2124D Managed Layer 2 Switch
The ExeGate EDGS-2124D Layer 2 Managed Switch is designed to connect devices within a local area network (LAN) and provide centralized network management. It is equipped with 24x10/100/1000Mbp and 1xGigabit SFP port. The switch provides flexible network configuration, supports Virtual Local Area Networks (VLANs), Quality of Service (QoS), device monitoring, access control, and loop prevention. It supports remote management via a web-based interface and/or CLI (Command Line Interface).
Centralized network management. Remote management via the WEB interface and/or CLI. VLAN support for network segmentation. QoS support for prioritizing network traffic. Monitoring the device status and network ports. Security and access control tools. Flexible configuration of network parameters. High performance and reliable operation. The ability to update the embedded software.
SpecificationCentralized network management. Remote management via the WEB interface and/or CLI. VLAN support for network segmentation. QoS support for prioritizing network traffic. Monitoring the device status and network ports. Security and access control tools. Flexible configuration of network parameters. High performance and reliable operation. The ability to update the embedded software.

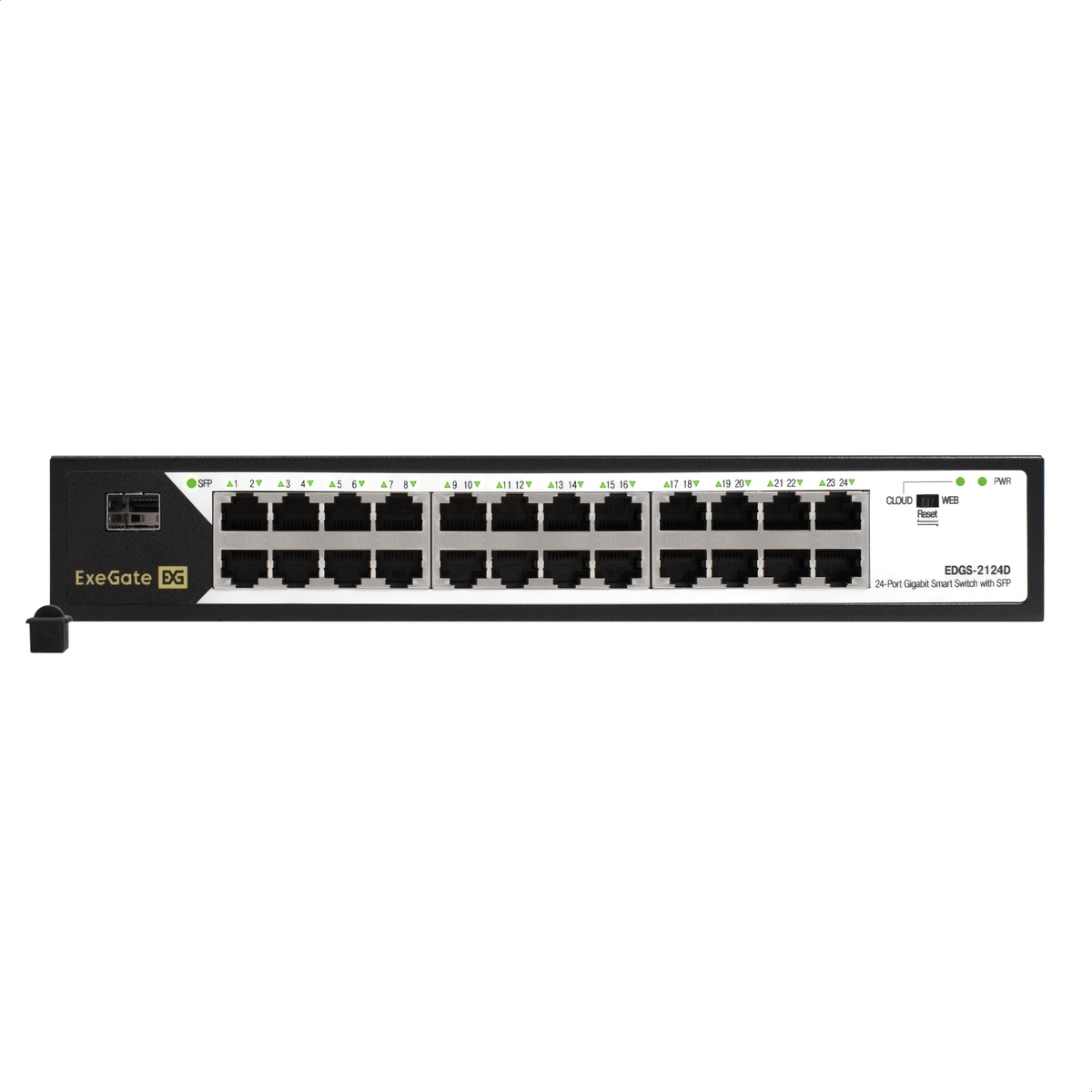

| Interface | 24 ports 10/100/1000Mbps+1xGigabit SFP port |
| LED Indicators | Link/Activity |
| Material | Metal |
| Mounting | Desk+Wall+Rack |
| IEEE Standards | IEEE802.3, EEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Support | QOS port support, traffic limitation on ports; all ports support automatic MDI/MDIX function; supports 802.1q VLAN, MTU-VLAN, VLAN port, suitable for various network business tasks; supports broadcast and multicast storm suppression; supports automatic MAC address learning and updating, as well as manual static MAC binding-ports; MAC port binding; port mirroring; plug and play. |
| Type | Managed |
| Switch level | Layer 2 |
| 10/100/1000BASE-T ports | 24 |
| SFP ports | 1 |
| Switching Capacity | 50Gbps |
| Transfer method | Store-and-forward |
| MAC Address | 8K |
| MAC Address learning and aging | Automatic |
| Buffer Memory | 4Mbit |
| Jumbo Frames | 15Kbytes |
| Port Mirroring | Yes |
| Access Control(ACL) | Yes |
| Spanning Tree Protocol (STP) | Yes |
| QoS | Yes |
| VLAN | Yes |
| DHCP Snooping | Yes |
| DHCP attack protection | Yes |
| Cooling system | Passive |
| Power | AC 100–240V, 50/60Hz, DC12V 2A |
| Usage conditions | |
| Storage Temperature | -10 ... +70 °C |
| Operating Temperature | 0 ... +40 °C |
| Storage humidity | 10% ... 90% non-condensing |
| Operating humidity | 20% ... 85% non-condensing |
| Network media | 1000 Base-T: 4 pairs of super 5 category (Cat5e) or above UTP/STP (up to and including 100 m) |
| Other | |

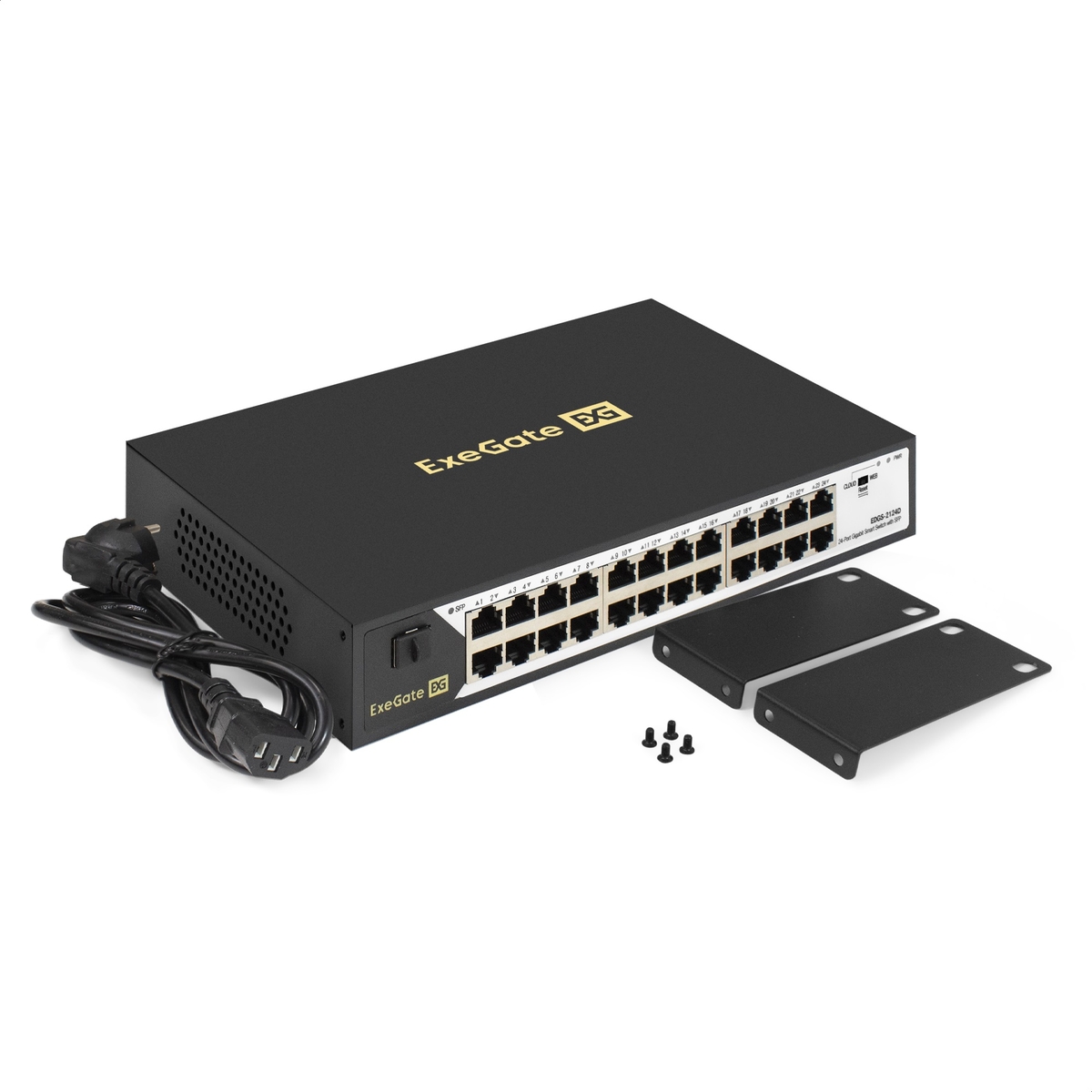

| Delivery set | Device, power cable, manual |
| Product size (W x H x D), mm | 270x180x45 |
| Net weight, kg | 1,6 |
| P/N | EX301545 |
| EAN | 4896034000071 |
