Products / Server equipment / PDU / 6 sockets EU/Type F(Schuko)

6 sockets EU/Type F(Schuko)

Model Maximum load current, A Output Sockets Input Power Control Functions Size with mount, mm Weight, kg P/N EAN
Socket Type of outlet Type of plug Specification Conductor material Length, m

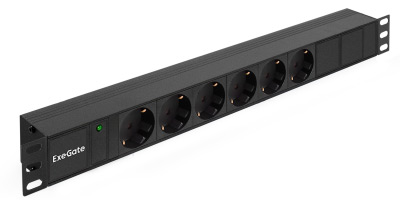

PDU-19H601ServerPro PDU-19H601
Al-6S-C14		 10 6 EU/Type F(Schuko) IEC 320 C14 Without power cable LED indication 487x45x45 0,6 EX280825 4895205111363

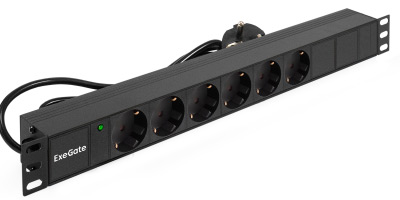

PDU-19H602ServerPro PDU-19H602
Al-6S-EU2CU		 16 6 EU/Type F(Schuko) Schuko plug (CEE 7/7) Wire section: 3 x 1,5 mm2 Copper 2 LED indication 487x46x46 0,85 EX280827 4895205111370
PDU-19H603ServerPro PDU-19H603
Al-6S-EU2.5CU		 16 6 EU/Type F(Schuko) Schuko plug (CEE 7/7) Wire section: 3 x 1,5 mm2 Copper 2,5 LED indication 487x46x46 0,9 EX280828 4895205111387
PDU-19H604ServerPro PDU-19H604
Al-6S-C14-2.5CU		 10 6 EU/Type F(Schuko) IEC 320 C14; Wire section: 3 x 1,5 mm2 Copper 2,5 LED indication 487x46x46 0,81 EX280829 4895205111394

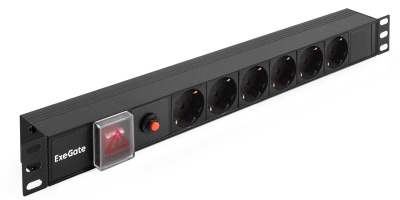

PDU-19H605ServerPro PDU-19H605
Al-6S-C14-SW-O		 10 6 EU/Type F(Schuko) IEC 320 C14 Without power cable Overload button; Switcher with light and cover 487x46x46 0,65 EX280830 4895205111400

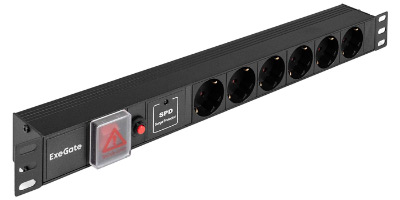

PDU-19H605
ServerPro PDU-19H605
Al-6S-C14-SW-O-SPD1		 10 6 EU/Type F(Schuko) IEC 320 C14 Without power cable Overload button; Switcher with light and cover; Protection filter with indicator 487x45x45 0,61 EX299606 4895205190214
PDU-19H606ServerPro PDU-19H606
Al-6S-EU2CU-SW-O		 16 6 EU/Type F(Schuko) Schuko plug (CEE 7/7) Wire section: 3 x 1,5 mm2 Copper 2 Overload button; Switcher with light and cover 487x46x46 0,88 EX280831 4895205111417
PDU-19H607ServerPro PDU-19H607
Al-6S-C14-SW-SPD1		 10 6 EU/Type F(Schuko) IEC 320 C14 Without power cable Protection filter with indicator; Switcher with light and cover 487x46x46 0,66 EX280832 4895205111424

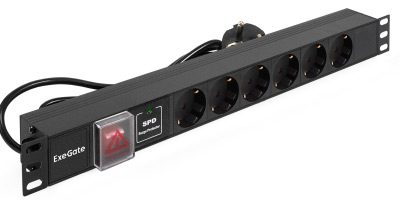

PDU-19H608ServerPro PDU-19H608
Al-6S-EU2CU-SW-SPD1		 16 6 EU/Type F(Schuko) Schuko plug (CEE 7/7) Wire section: 3 x 1,5 mm2 Copper 2 Protection filter with indicator; Switcher with light and cover 487x46x46 0,88 EX280833 4895205111431

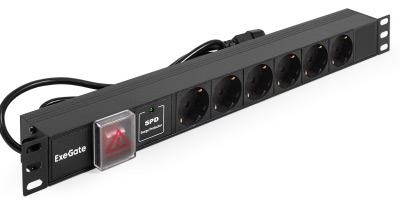

PDU-19H609ServerPro PDU-19H609
Al-6S-C14-2CU-SPD1		 10 6 EU/Type F(Schuko) IEC 320 C14; Wire section: 3 x 1,0 mm2 Copper 2 Protection filter with indicator; Switcher with light and cover 487x46x46 0,8 EX280834 4895205111448

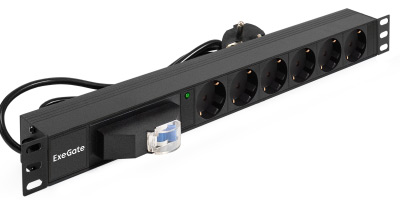

PDU-19H610ServerPro PDU-19H610
Al-6S-EU2.5CU-1P		 16 6 EU/Type F(Schuko) Schuko plug (CEE 7/7) Wire section: 3 x 1,5 mm2 Copper 2,5 Circuit breaker 487x46x46 1,02 EX280835 4895205111455
