Products / Server equipment / PDU / 8 sockets EU/Type F(Schuko)

8 sockets EU/Type F(Schuko)

Model Maximum load current, A Output Sockets Input Power Control Functions Size with mount, mm Weight, kg P/N EAN
Socket Type of outlet Type of plug Specification Conductor material Length, m

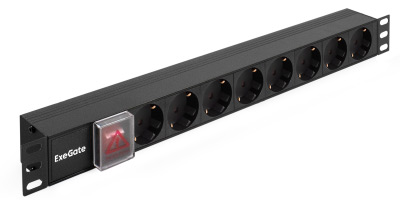

PDU-19H801ServerPro PDU-19H801
Al-8S-C14-SW		 10 8 EU/Type F(Schuko) IEC 320 C14 Without power cable Switcher with light and cover 487x46x46 0,66 EX280840 4895205111509
PDU-19H802ServerPro PDU-19H802
Al-8S-EU1.8CU-SW		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 1,8 Switcher with light and cover 487x46x46 0,88 EX280841 4895205111516

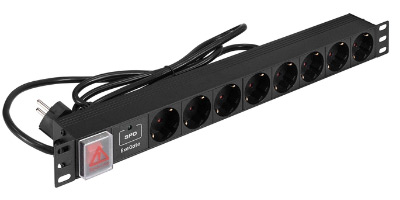

PDU-19H802
ServerPro PDU-19H802
Al-8S-EU1.8CU-SW-SPD1		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 1,8 Switcher with light and cover; Protection filter with indicator 487x45x45 0,86 EX299604 4895205190245

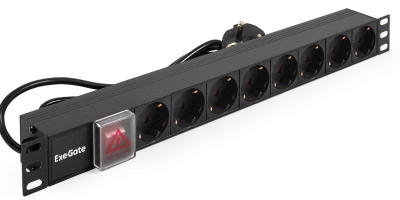

PDU-19H803ServerPro PDU-19H803
Al-8S-EU2CU-SW		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2 Switcher with light and cover 487x46x46 0,9 EX280842 4895205111523
PDU-19H804ServerPro PDU-19H804
Al-8S-EU2.5CU-SW		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2,5 Switcher with light and cover 487x46x46 0,94 EX280843 4895205111530
PDU-19H804
ServerPro PDU-19H804
Al-8S-EU2.5CU-SW-SPD1		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2,5 Switcher with light and cover; Protection filter with indicator 487x45x45 0,9 EX299605 4895205190252
PDU-19H805ServerPro PDU-19H805
Al-8S-EU3CU-SW		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 3 Switcher with light and cover 487x46x46 0,99 EX280844 4895205111547
PDU-19H805
ServerPro PDU-19H805
Al-8S-EU3CU-SW-SPD1		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 3 Switcher with light and cover; Protection filter with indicator 487x45x45 0,95 EX299603 4895205190238

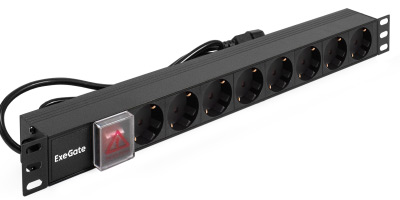

PDU-19H806ServerPro PDU-19H806
Al-8S-C14-3-SW		 10 8 EU/Type F(Schuko) IEC 320 C14;
Undetachable		 Wire section: 3 x 1,0 mm2 Copper 3 Switcher with light and cover 487x46x46 0,9 EX280845 4895205111554

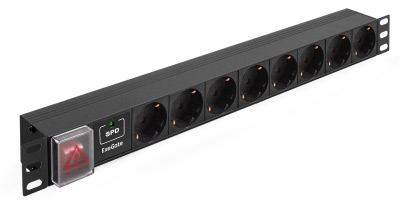

PDU-19H807ServerPro PDU-19H807
Al-8S-EU2-SW-SPD1		 16 8 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2 Switcher with light and cover; Protection filter with indicator 487x46x46 0,91 EX280846 4895205111561
