Products / Server equipment / PDU / 9 sockets EU/Type F(Schuko)

9 sockets EU/Type F(Schuko)

Model Maximum load current, A Output Sockets Input Power Control Functions Size with mount, mm Weight, kg P/N EAN
Socket Type of outlet Type of plug Specification Conductor material Length, m

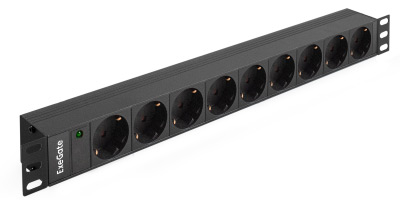

PDU-19H901ServerPro PDU-19H901
Al-9S-C14		 10 9 EU/Type F(Schuko) IEC 320 C14 Without power cable LED indication 487x46x46 0,67 EX280847 4895205111608
PDU-19H902ServerPro PDU-19H902
Al-9S-EU1.8CU		 16 9 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 1,8 LED indication 487x46x46 0,87 EX280848 4895205111615
PDU-19H903ServerPro PDU-19H903
Al-9S-EU2CU		 16 9 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2 LED indication 487x46x46 0,88 EX280849 4895205111622
PDU-19H904ServerPro PDU-19H904
Al-9S-EU2.5		 16 9 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2,5 LED indication 487x46x46 0,95 EX280850 4895205111639
PDU-19H905ServerPro PDU-19H905
Al-9S-EU3CU		 16 9 EU/Type F(Schuko) Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 3 LED indication 487x46x46 0,99 EX280851 4895205111646

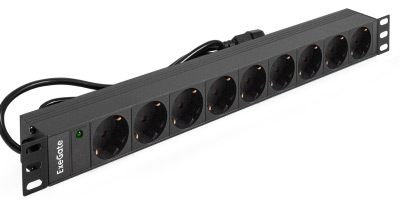

PDU-19H906ServerPro PDU-19H906
Al-9S-C14-2.5CU		 10 9 EU/Type F(Schuko) IEC 320 C14;
Undetachable		 Wire section: 3 x 1,0 mm2 Copper 2,5 LED indication 487x46x46 0,86 EX280852 4895205111653
PDU-19H907ServerPro PDU-19H907
Al-9S-C20		 16 9 EU/Type F(Schuko) IEC 320 C20 Without power cable LED indication 487x46x46 0,67 EX280853 4895205111660
