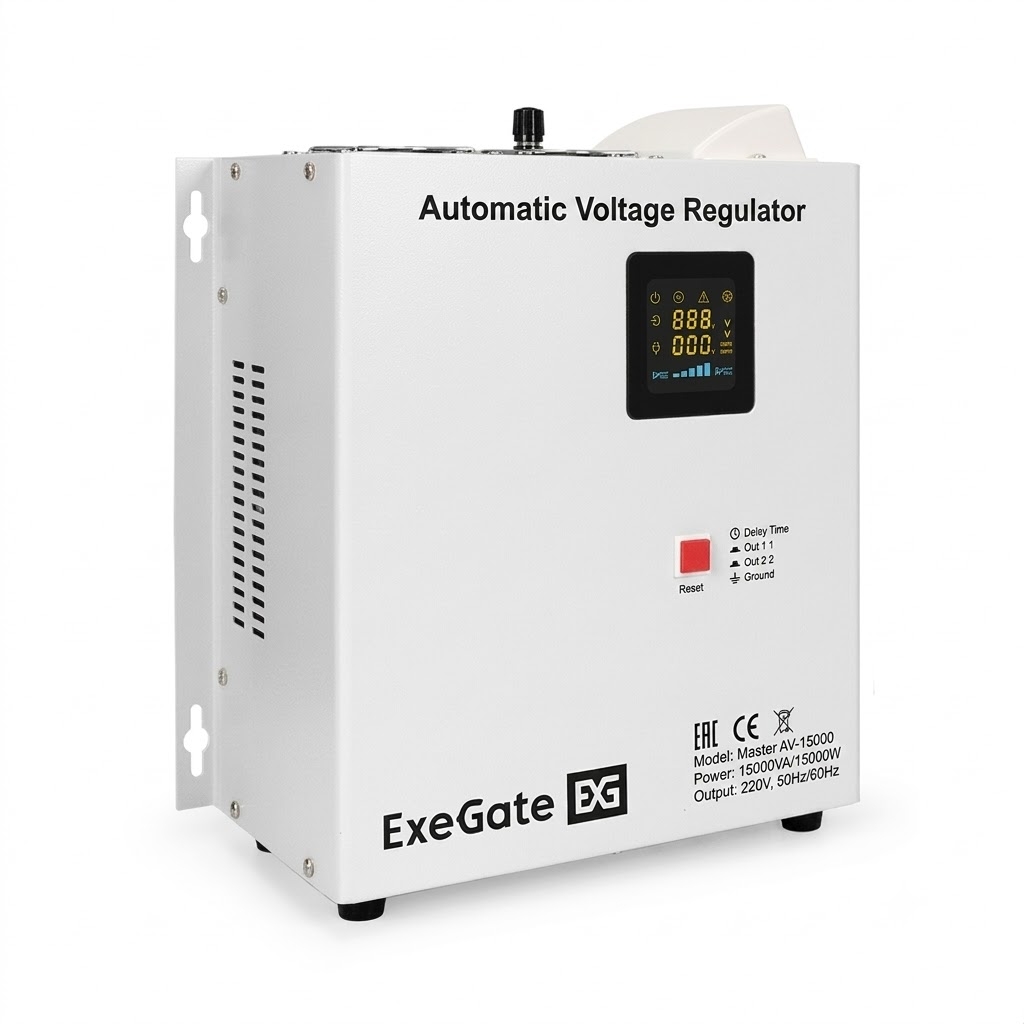

AVR ExeGate Master AV-15000
Specification
| Common parameter | |
| Full output power, VA | 15000 |
| Active output power*, W | 15000 |
| Installation method | Wall and Floor installation |
| Type | Relay voltage regulator |
| Operating mode indication | |
| Indication of input/output parameters | LCD |
| The input voltage is below the permissible range | The delay mode indicator on the display |
| The stabilizer is working to increase the input voltage | The delay mode indicator on the display |
| The input voltage is above the permissible range, the stabilizer works to lower the input voltage | The delay mode indicator on the display |
| The stabilizer works to lower the input voltage | The delay mode indicator on the display |
| The stabilizer is in mains mode | The delay mode indicator on the display |
| The mains voltage is within the permissible voltage range | The delay mode indicator on the display |
| Delaying (Output is being suppressed) | The delay mode indicator on the display |
| Overheating of the stabilizer | The delay mode indicator on the display |
| Input and output parameters | |
| Input Voltage, V | 140-260 |
| Output Voltage, V | 220±8% |
| Switching time, ms, less | 7 |
| Efficiency | 98% |
| Load connection | 5P terminal block |
| Input Frequency, Hz | 50 |
| Maximum input current, A | 75 |
| Other parameters | |
| Power | 5P terminal block |
| Surge Protection | Overvoltage / undervoltage, high voltage impulse, short circuit, overload and overheat protection. |
| Bypass | Yes |
| Enironmental | Operating Environment, °C, operating Relative Humidity, % |
| Delivery set | AVR, manual, mounting kit, template |
| Product size, mm | 310x312x167 |
| Net weight, kg | 20,5 |
| Gross weight, kg | 21,5 |
| P/N | EX291764 |
| EAN | 4895205137134 |
