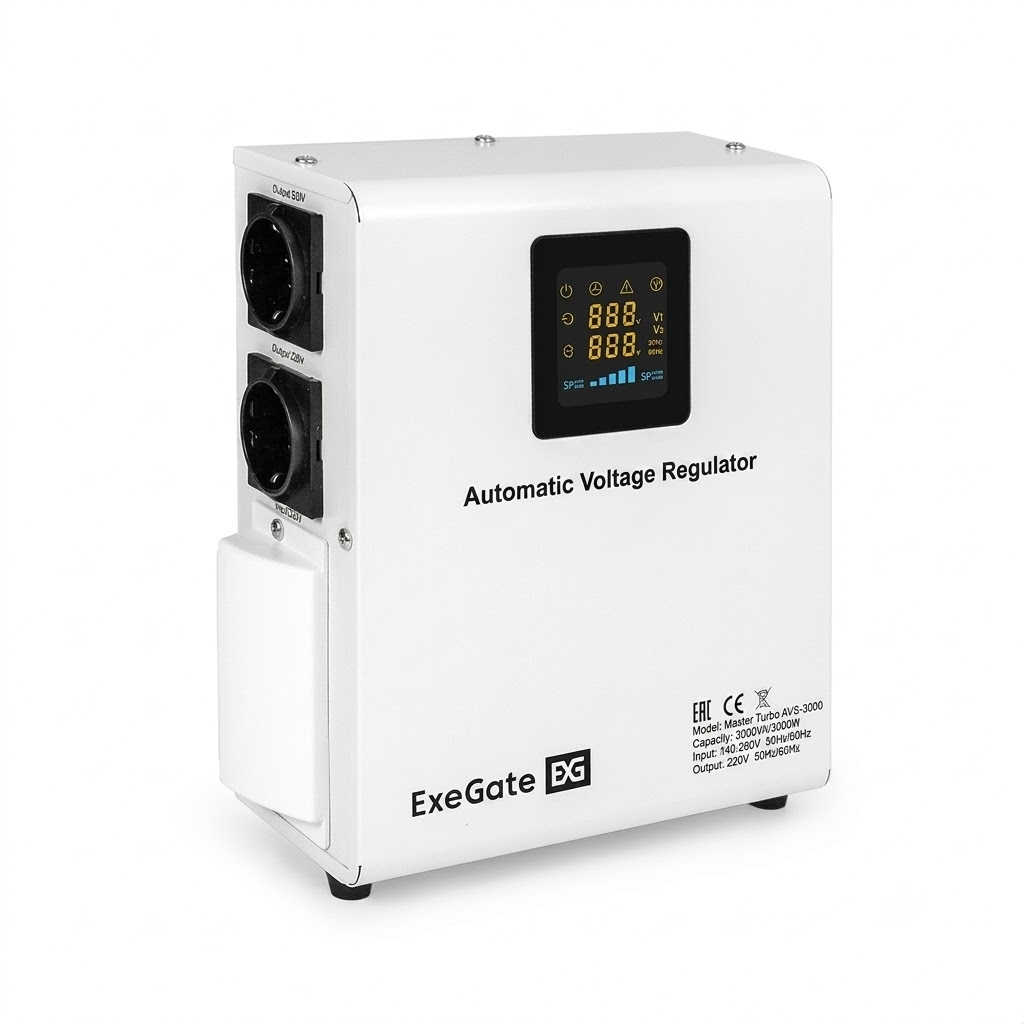

AVR ExeGate Master Turbo AVS-3000
Specification
| Common parameter | |
| Full output power, VA | 3000 |
| Active output power, W | 1800 |
| Installation method | Wall and Floor installation |
| Type | Relay voltage regulator |
| Operating mode indication | |
| Indication of input/output parameters | LCD |
| The input voltage is below the permissible range | The delay mode indicator on the display |
| The stabilizer is working to increase the input voltage | The delay mode indicator on the display |
| The input voltage is above the permissible range, the stabilizer works to lower the input voltage | The delay mode indicator on the display |
| The stabilizer works to lower the input voltage | The delay mode indicator on the display |
| The stabilizer is in mains mode | The green LED is on |
| The mains voltage is within the permissible voltage range | The green LED is on |
| Delaying (Output is being suppressed) | The delay mode indicator on the display |
| Overheating of the stabilizer | The delay mode indicator on the display |
| Input and output parameters | |
| Input Voltage, V | 100-265 |
| Output Voltage, V | 220±10% |
| Response time, ms | 5-7 |
| Efficiency | 98% |
| Load connection | 2*Schuko + 5P terminal block |
| Location of outlets | In the side panel |
| Child protection | Yes |
| Input Frequency, Hz | 50 |
| Maximum input current, A | 15 |
| Other parameters | |
| Power | 5P terminal block |
| Surge Protection | Overvoltage / undervoltage, high voltage impulse, short circuit, overload and overheat protection. |
| Enironmental | Operating Environment, °C, operating Relative Humidity, % |
| Delivery set | AVR, manual |
| Product size, mm | 265x233x105 |
| Net weight, kg | 5 |
| Gross weight, kg | 5,4 |
| P/N | EX291748 |
| EAN | 4895205129351 |
